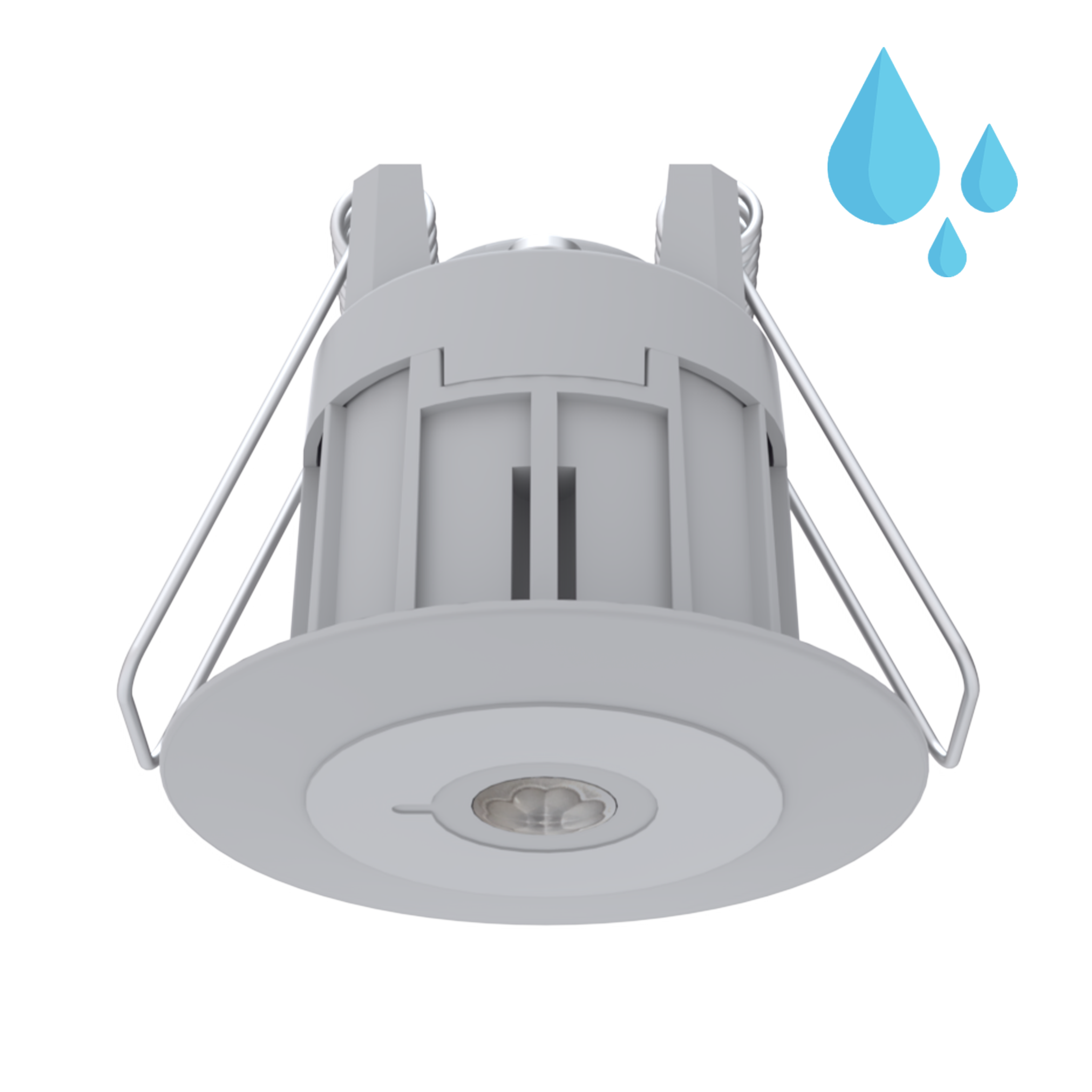

IP67 rated motion sensors, for those more demanding locations
Simply connects to multiple systems
Simply Connects to Multiple Systems
The sensor can be connected directly to a Control4 system using a simple contact closure.
Rako systems can benefit from the Faradite Motion Sensor 360 IP67 - Volt Free with easy integration.
100% Silent relay
No annoying 'Click'. The Motion Sensor 360 range uses a completely silent, solid state relay.
High IP rating
The IP67 rating means the sensor can be installed in those more demanding locations to provide more smart solutions.
Internal sensitivity adjustment allows for customisation of the sensors detection sensitivity.
Low voltage power, ideal for a broad range of control systems.
So small it can be mounted in a business card. The visible front is just 49mm across.
A subtle stylish sensor that protrudes less than 3.5mm from the ceiling or wall.
Our motion sensors use the latest digital sensors
Here at Faradite, design is everything, but, not at the compromise of functionality. During the design of the Motion Sensor 360 range we wanted to keep the profile to a minimum. The result, a high spec digital sensor that only protrudes 3.5mm from the ceiling.
The Motion Sensor 360 range introduces a robust, discrete and stylish option for your smart home.
Our connectors make for a speedy installation. First strip the cable core...
PUSH FIT CONNECTION
Simply push the core into the terminal.
To remove cables, insert the supplied SIM card remover tool into the slot above the cable terminal to release cable.

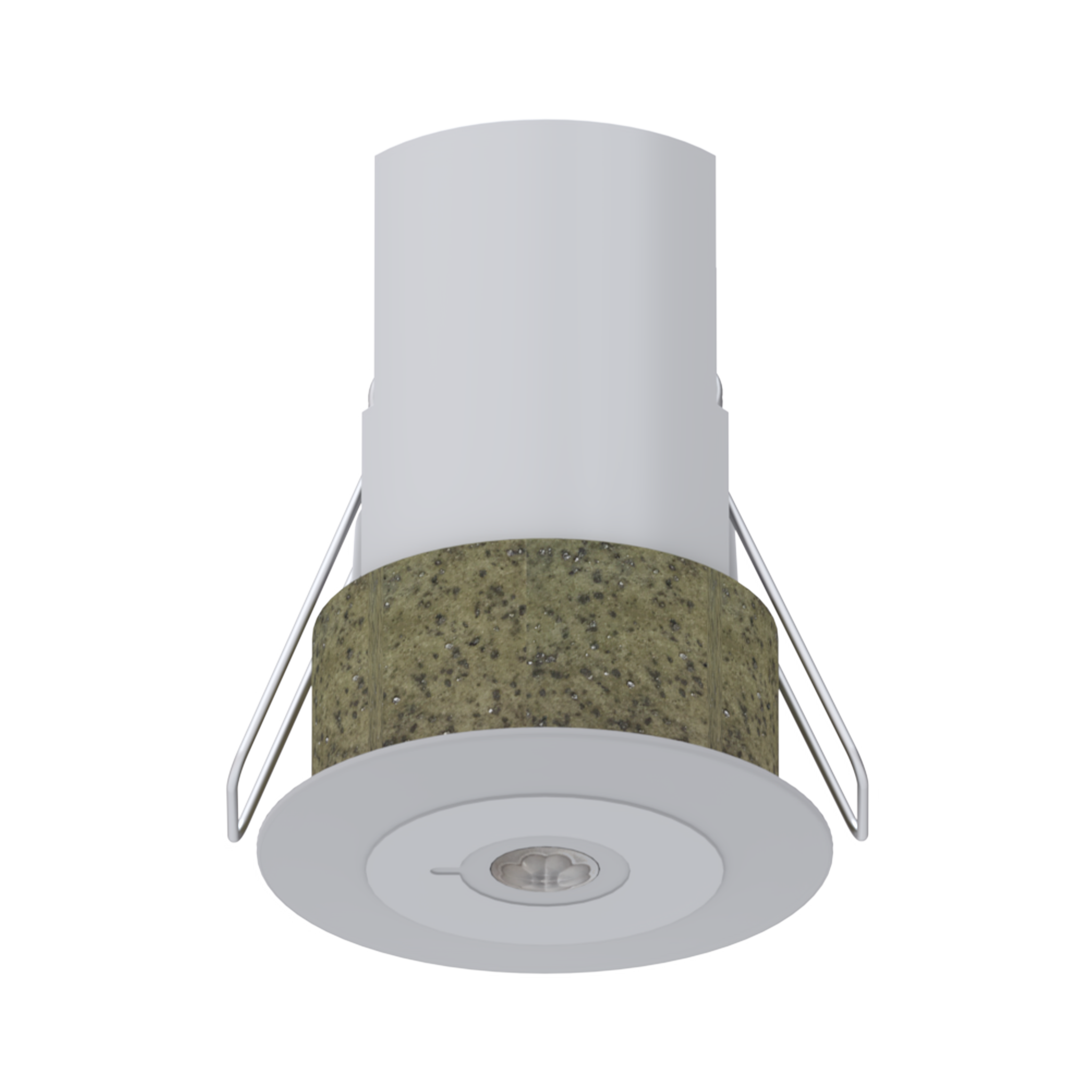

The Fire IDR is specially made by Envirograf® to fire rate the Motion Sensor 360 range, according to BS476: Part 21 1987.
The intumescent material expands in a fire, sealing the hole in the ceiling structure. With the Fire IDR fitted, the Motion Sensor 360 has a 60 minute fire rating.
If you are installing the sensor in a fire rated ceiling then select the fire rated option and we will ship you the sensor and a Fire IDR.
To install the Faradite sensor, cut a 35mm hole using a suitable hole saw (40mm for fire rated). Fold the spring clips upwards and push through the hole.
5V-35 DC @ 24V (3mA)
Push fit screwless connector AWG 20- 24 suitable for CAT5 / CAT6.
RANGE / DETECTION AREA
Specified Range 5M / When mounted at a height of 3M, the sensor covers a 6M x 6M floor area. When mounted at 2.5M, it covers a floor area of 5M x 5M.
Ideal for CAT 5/6. First, pierce the sealed cable entry with a small screwdriver/nail, next push the CAT cable through ensuring the seal is tight around the cable. Strip cores and terminate into push fit connectors.
Works with Belden/alarm cable as with CAT cable; pierce the sealed cable entry, push the cable through ensuring the seal is tight around the cable. Strip cores, insert a small screwdriver or the provided tool to open the spring terminals and insert wire.
