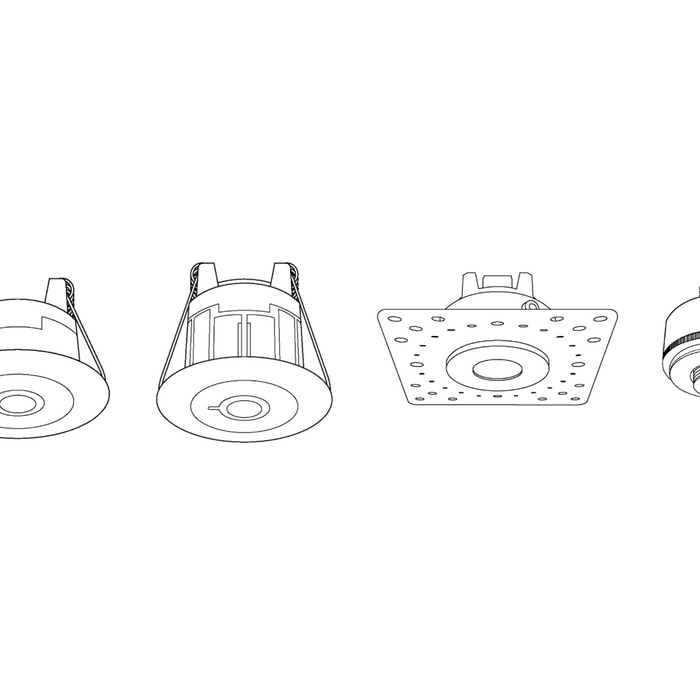

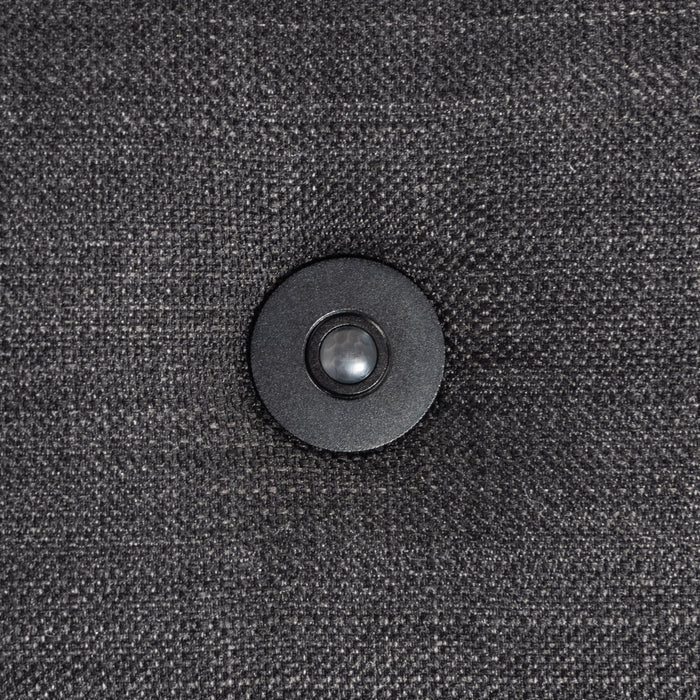

Motion Sensor 360   Volt Free

Motion Sensor 360

Volt Free

JUST LAUNCHED

BUY NOW
Faradite TAP-1

Faradite TAP-1

Loxone compatible switch plates

BUY NOW
Faradite TAP-5

Faradite TAP-5

Loxone compatible switch plates

BUY NOW
Motion Sensor360 (0-10V LUX)

Motion Sensor

360 (0-10V LUX)

Perfect for use with Loxone and Control4

BUY NOW

Faradite TAP Range

It's not just a light switch

The Faradite TAP switch plates have been designed for use with 24V home automation systems such as Loxone.

They integrate with your smart home control system, providing a stylish wall-mounted interface to control your lights, music, blinds and much more.

TAP-5 Brushed Stainless Steel
  • Temperature sensor

    All our switches come with a temperature sensor. Knowing the temperature of each room is the key to an energy efficient smart home

  • Touch vibration

    Our favourite feature - the TAP Range gives tactile vibration feedback at each touch, and works with double/triple click functions

  • 24V

    Compatible with Loxone and other 5-30V home automation systems

  • Digital outputs

    Connects to the digital inputs of smart home automation systems, allowing your switch plate to control multiple devices

  • Temperature sensor

    Temperature sensor

    The 1-Wire sensor, postitioned for optimal airflow, captures accurate room temperatures

    Temperature sensor
  • Push-fit connectors

    Push-fit connectors

    For ease of installation, the TAP-5 comes with push-fit connectors, designed for use with CAT cable

    Push-fit connectors
  • Integrated test points

    Integrated test points

    The TAP-5 comes with easy-to-access test points allowing you to probe the terminals when installed

    Integrated test points

The TAP-5 in action controlling Sonos

TAP-5 extra product features

UV stable plastic with finger proof coating
The TAP-5 has a surface coating to reduce finger prints, and UV stable plastic meaning that the TAP-5 is suitable for use in direct sunlight
Integrated test points
The TAP-5 comes with easy-to-access test points which have been built in alongside the push-fit connectors allowing you to probe the digital outputs when installed
Push-fit connectors
For ease of installation, the TAP-5 comes with push-fit connectors, designed for use with CAT cable
Rotary and laser engravable
Our switch plates have been designed to be customisable using any standard laser or rotary engraving machine
Low profile design
A sleek super slim profile means the TAP-5 raises just 4.7mm from the wall
CE and RoSH compliant
The future-proof design of the TAP-5 is compliant with the relevant legislation

Connects to Loxone

The Faradite TAP range is designed to connect directly to the Loxone Tree Bus using a Nano DI Tree module, making the installation of the TAP range incredibly quick and easy. Alternatively, they can be connected directly to Loxone’s digital inputs on the Miniserver itself, or to any of the Loxone extensions that have digital inputs including the handy DI extension.

The Loxone Miniserver requires a 1-wire extension to integrate to the TAP-5’s temperature sensor.

Connects to Loxone

Simplicity is the ultimate sophistication

The TAP-1 is perfect for those rooms where you just have lighting and heating. Our switch plates are fully compatible with the Loxone standard - for example, triple click for whole house off and press and hold for dimming.

Talk with a Loxone partner to understand the options and take control of your smart home in style.

Simplicity is the ultimate sophistication

Effortless control at your fingertips

When a room has multiple automated functions such as blinds and music as well as lights, then the TAP-5 is the way to go.

The TAP-5’s buttons can be configured by your Loxone partner to control anything in the house. We recommend that the centre button is always used for lighting, and this also ensures consistency with other rooms that might just have a TAP-1. The outside buttons can then be used exclusively for control of extended functions.

Effortless control at your fingertips
