Discreet motion sensing for the ultimate smart home
Simply connects to multiple systems
Simply Connects to Multiple Systems
The sensor can be connected directly to a Control4 system using a simple contact closure.
The sensor can be connected directly to a Loxone smart home using a single digital input.
Rako systems can benefit from the Faradite Motion Sensor 360 - Volt Free with easy integration.
Great with Lutron lighting control systems by using any contact closure input.
100% Silent relay
No annoying 'Click'. The motion Sensor 360 range uses a completely silent, solid state relay.
Low profile

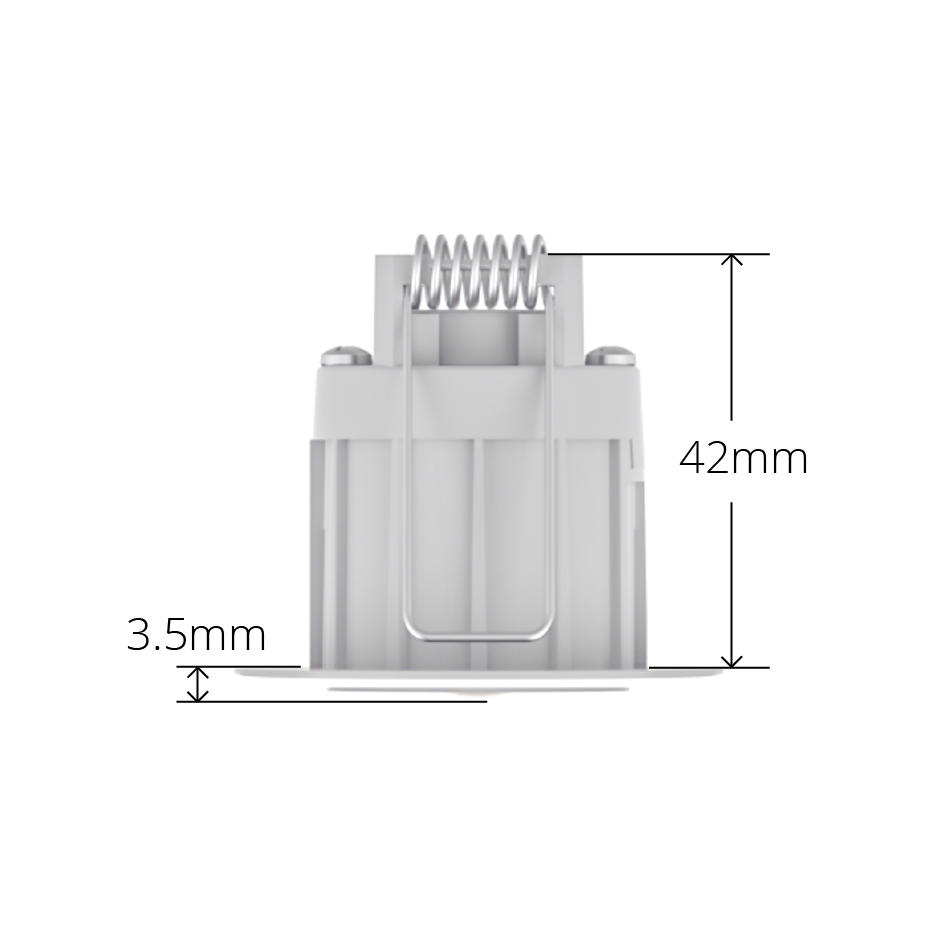

A subtle stylish sensor that protrudes less than 3.5mm from the ceiling.
Very Small

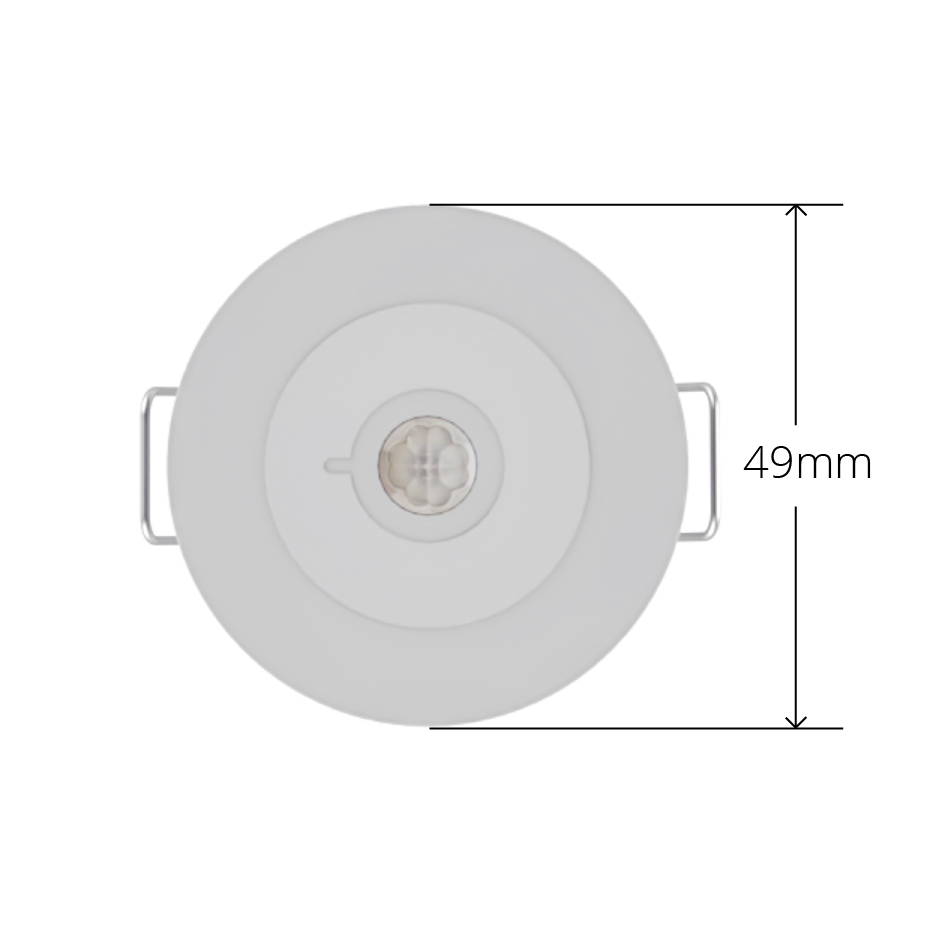

So small it can be mounted in a business card. The visible front is just 49mm across.
DC power
Low voltage power, ideal for a broad range of control systems.
Our motion sensors use the latest digital sensors
Here at Faradite, design is everything, but, not at the compromise of functionality. During the design of the Motion Sensor 360 range we wanted to keep the profile to a minimum. The result, a high spec digital sensor that only protrudes 3.5mm from the ceiling.
Working with the leading fresnel lens experts, we accomplished a design that is both low profile yet retains a large sensing area, comparable to the performance of larger domed fresnel lenses commonly used in other sensors.When mounted at a height of 3M, the sensor covers an ~8M diameter floor area. When mounted at 2.5M, it covers a floor area of 5.6M by 6.6M.
The Motion Sensor 360 introduces a robust, discrete and stylish option for your smart home.
PUSH-FIT INSTALLATION
Our connectors make for a speedy installation, simply strip the solid core wire and push into the connector
REMOVE CABLE
Simply insert the supplied tool or a small screwdriver to release the wire
REMOVABLE CONNECTORS
To remove the sensor, simply pull the connector out of the motion sensor. It couldn't be simpler
The Fire IDR is specially made by Envirograf® for use with the Motion Sensor 360 range. It is designed to fire rate installations of the Motion Sensor 360 range, according to Document B of Building Regulations (BS476: Part 21 1987).
It is a lightweight metal unit containing intumescent material that expands in a fire, holding the unit in place while sealing the hole in the ceiling structure. With the Fire IDR fitted, the Motion Sensor 360 range can be installed in ceilings with a 1 hour fire rating.
If you are installing the sensor in a fire rated ceiling then select the fire rated option and we will ship you the sensor and a Fire IDR.
iNSTALLATION

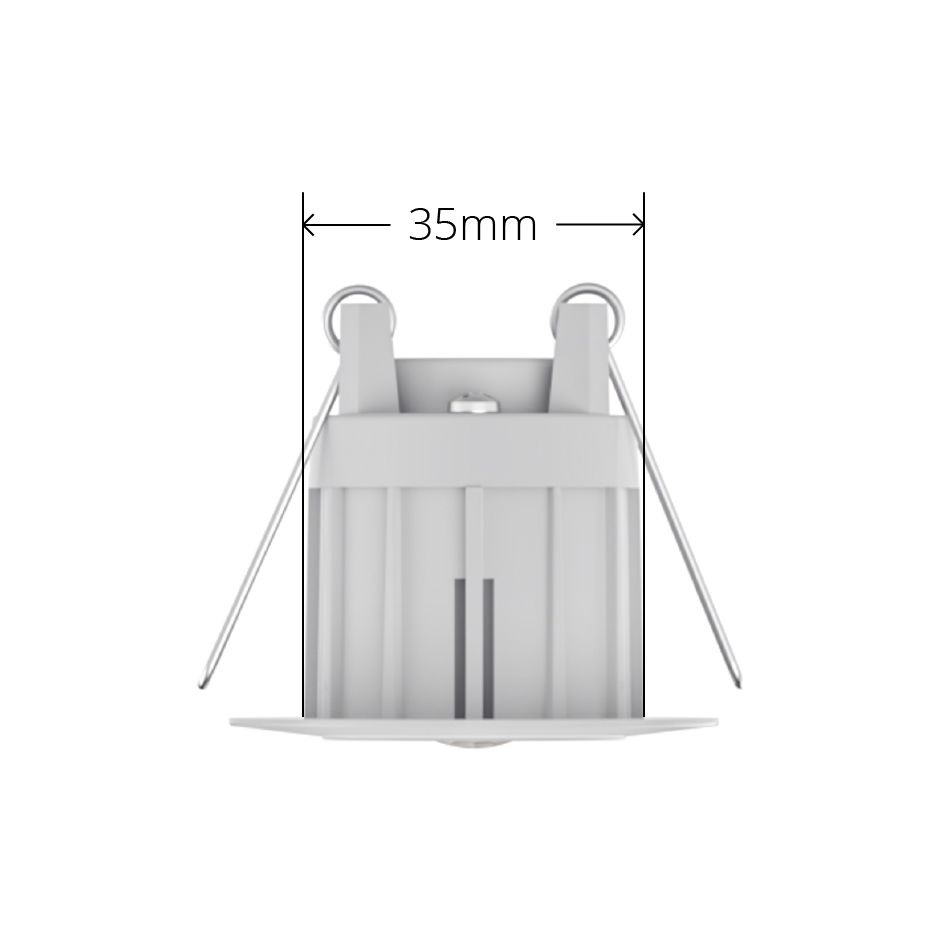

To install the Faradite sensor, cut a 35mm hole using a suitable hole saw (40mm for fire rated). Fold the spring clips upwards and push through the hole.
pOWER sUPPLY
5V-24V DC @ 24V (3mA)
CONNECTOR
Push fit screwless connector AWG 20- 24 suitable for CAT5 / CAT6 / CAT7.
RANGE/DETECTION AREA
Specified Range 5M / When mounted at a height of 3M, the sensor covers an ~8M diameter floor area. When mounted at 2.5M, it covers a floor area of 5.6M by 6.6M.
CAT 5/6
Ideal for CAT 5/6, simply strip the solid core wire and push into the connector
CAT 7
Ideal for CAT 7, simply strip the solid core wire and push into the connector
STRANDED CABLE
Ideal for stranded cable (e.g. Belden Cable), simply insert the supplied sim card remover tool before pushing the wire into the connector
