MOTION SENSOR 360 WHITE (0-10V LUX)

The Faradite Motion Sensor 360 White 0-10V LUX is a low profile, 12-24V PIR (passive infrared), ceiling mounted motion sensor with an integrated 0-10V (0-1000 Lux) light sensor. It is designed for use with building automation systems, such as Loxone and Crestron.

If you are installing the sensor in a fire rated ceiling then select the fire rated option and we will ship you the sensor and a Fire IDR. When the Fire IDR is fitted the sensor is fire rated for 60 minutes. The height of the Fire IDR is 60mm.

DOWNLOAD - PDF DATASHEET

Discreet motion sensing for the ultimate smart home

Simply connects to multiple systems

Simply Connects to Multiple Systems

Loxone logo

The sensor can be connected directly to a Loxone system utilising the Digital and Analogue inputs.

Crestron logo

Connect the Motion Sensor 360 - 0-10V to Crestron for discreet motion and brightness sensing.

Benefits


100% Silent relay


No annoying 'Click'. The Motion Sensor 360 range uses a completely silent, solid state relay.



Low profile


A subtle stylish sensor that protrudes less than 3.5mm from the ceiling.



Very Small


So small it can be mounted in a business card. The visible front is just 49mm across.



DC power


Low voltage power, ideal for a broad range of control systems.

Our motion sensors use the latest digital sensors

SMALL AND EFFECTIVE

Here at Faradite, design is everything, but, not at the compromise of functionality. During the design of the Motion Sensor 360 range we wanted to keep the profile to a minimum. The result, a high spec digital sensor that only protrudes 3.5mm from the ceiling.

The Motion Sensor 360 range introduces a robust, discrete and stylish option for your smart home.

PUSH-FIT TECHNOLOGY
Faradite 0-10v motion sensor terminals with cat5 cable core

PUSH-FIT INSTALLATION

Our connectors make for a speedy installation, simply strip the solid core wire and push into the connector

Faradite 0-10v motion sensor terminals with sim card remover tool

REMOVE CABLE

Simply insert the supplied tool or a small screwdriver to release the wire

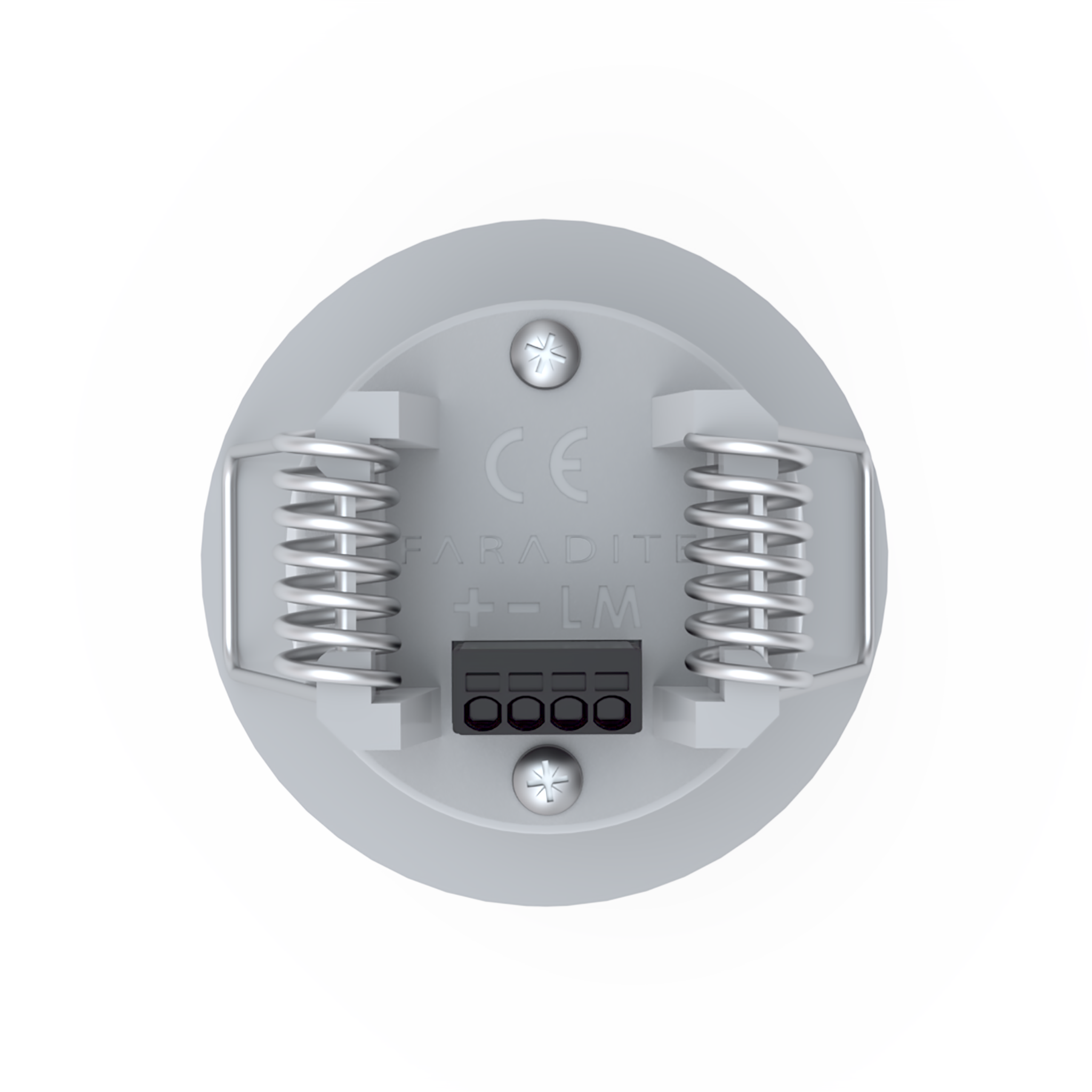

Faradite 0-10 motion sensor showing removable terminal block

REMOVABLE CONNECTORS

To remove the sensor, simply pull the connector out of the motion sensor. It couldn't be simpler

FIRE RATED OPTIONS

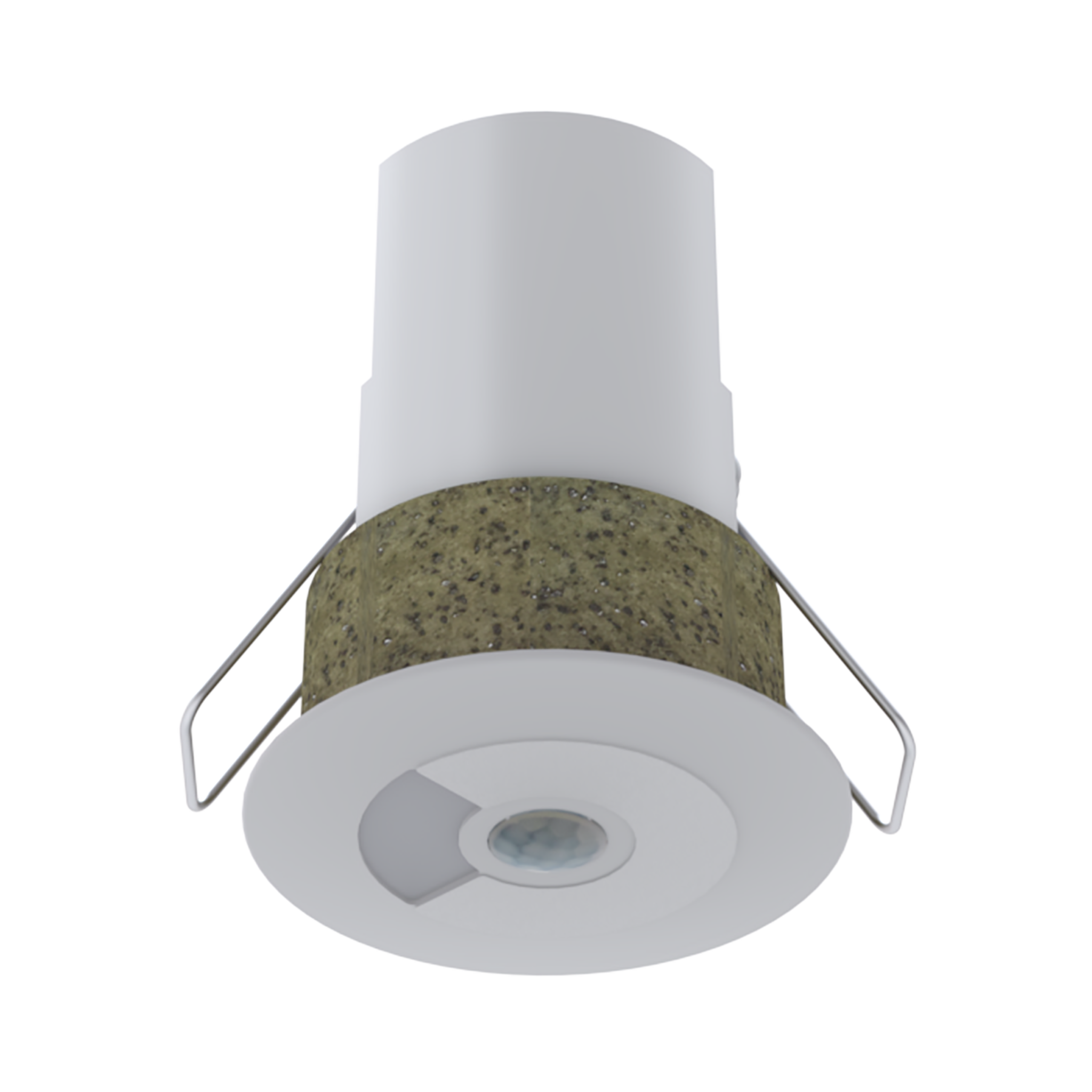

The Fire IDR is specially made by Envirograf® to fire rate the Motion Sensor 360 range, according to BS476: Part 21 1987.The intumescent material expands in a fire, sealing the hole in the ceiling structure.


With the Fire IDR fitted, the Motion Sensor 360 has a 60 minute fire rating. The height of the Fire IDR is 60mm.


 If you are installing the sensor in a fire rated ceiling then select the fire rated option and we will ship you the sensor and a Fire IDR.

DIMENSIONS
Faradite 0-10v motion sensor just 35mm diameter cut out
Faradite 0-10v motion sensor measuring 49mm diameter
Faradite 0-10v motion sensor depth dimensions 42mm
technical specification



iNSTALLATION


To install the Faradite sensor, cut a 35mm hole using a suitable hole saw (40mm for fire rated). Fold the spring clips upwards and push through the hole.



CONNECTIONS



12V - 24V DC @ 24V (3mA)

Digital Output (Motion)

0-10V Analog Output (Brightness)



CONNECTOR


Push fit screwless connector AWG 20- 24 suitable for CAT5 / CAT6 / CAT7.




RANGE / DETECTION AREA


Specified Range 5M / When mounted at a height of 3M, the sensor covers an ~8M diameter floor area. When mounted at 2.5M, it covers a floor area of 5.6M by 6.6M.


Equivalent Circuit

CABLE TYPES
Faradite motion sensor 360 terminals with Cat5/cat6 cables in terminals

CAT 5/6

Ideal for CAT 5/6, simply strip the solid core wire and push into the connector

Faradite motion sensor 360 terminals with Cat7 cables in terminals

CAT 7

Ideal for CAT 7, simply strip the solid core wire and push into the connector

Faradite motion sensor 360 terminals with stranded cables in terminals

STRANDED CABLE

Ideal for stranded cable (e.g. Belden Cable), simply insert the supplied sim card remover tool before pushing the wire into the connector
