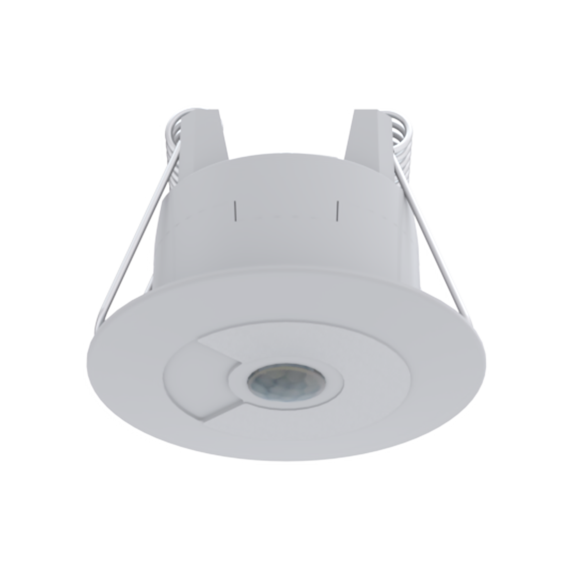

MOTION SENSOR 360 WHITE- VOLT FREE
£ 56.00 exVAT
£ 67.20 incVAT
MOTION SENSOR 360 WHITE- VOLT FREE
The Faradite Motion Sensor 360 White - Volt Free is a 5-24V low profile, silent, discreet passive infrared ceiling mounted motion sensor. Protruding only 3.5mm from the ceiling its discreet look and miniature size does not detract from the décor and architecture of your home.
The sensor can be used to automate your lighting control for an energy efficient and comfortable smart home experience.
The sensor can be used with 5-24V home/building/lighting control systems that have volt free / dry contact inputs, such as Lutron, Crestron, Loxone and Control4.
When installing the sensor in a fire rated ceiling please select the fire rated option.
When the Fire IDR is fitted the sensor is fire rated for 60 minutes.
We aim to dispatch all orders, placed before 12:00, on the same day for next day delivery in the UK. We use DPD or UPS for domestic UK orders, and FedEx or DHL for international orders. All shipping charges will be automatically calculated at the checkout. All transactions are carried out in pounds sterling.
If you have any questions regarding shipping please email email@example.com and we will aim to get back to you within 24 hours.
Discreet motion sensing for the ultimate smart home
Simply connects to multiple control systems
that have volt free / dry contact inputs
Our motion sensors use the latest digital sensors
100% silent relay
No annoying click. The motion sensor 360 range uses a silent solid state relay

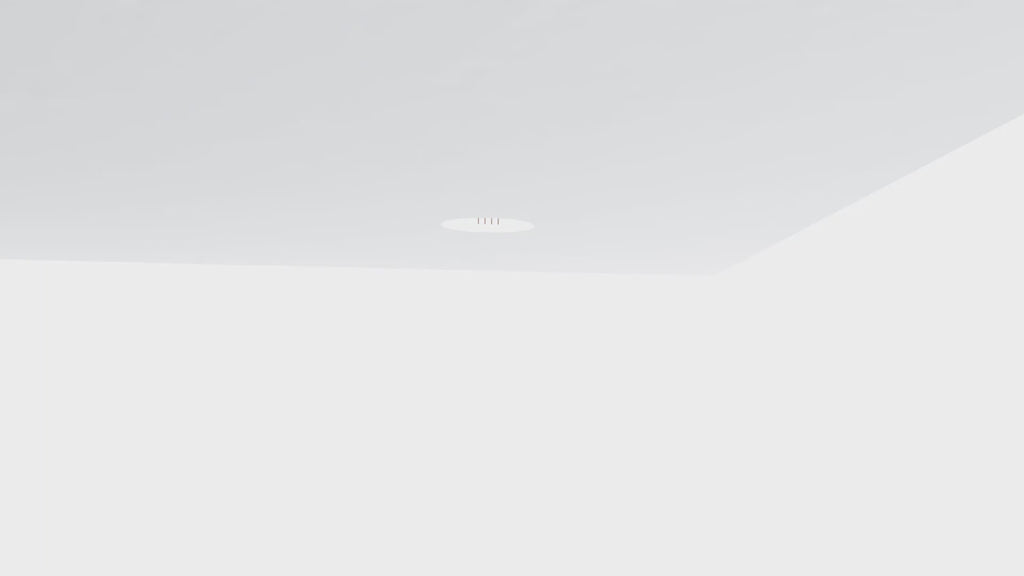

A subtle stylish sensor that protrudes less than 3.5mm from the ceiling

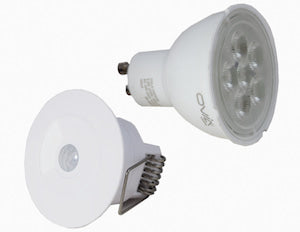

So small it can be mounted in a business card
Small and effective
Here at Faradite, design is everything, but, not at the compromise of functionality. During the design of the Motion Sensor 360 range we wanted to keep the profile to a minimum. The result, a high spec digital sensor that only protrudes 3.5mm from the ceiling.
Working with the leading fresnel lens experts, we accomplished a design that is both low profile yet retains a large sensing area, comparable to the performance of larger domed fresnel lenses commonly used in other sensors.

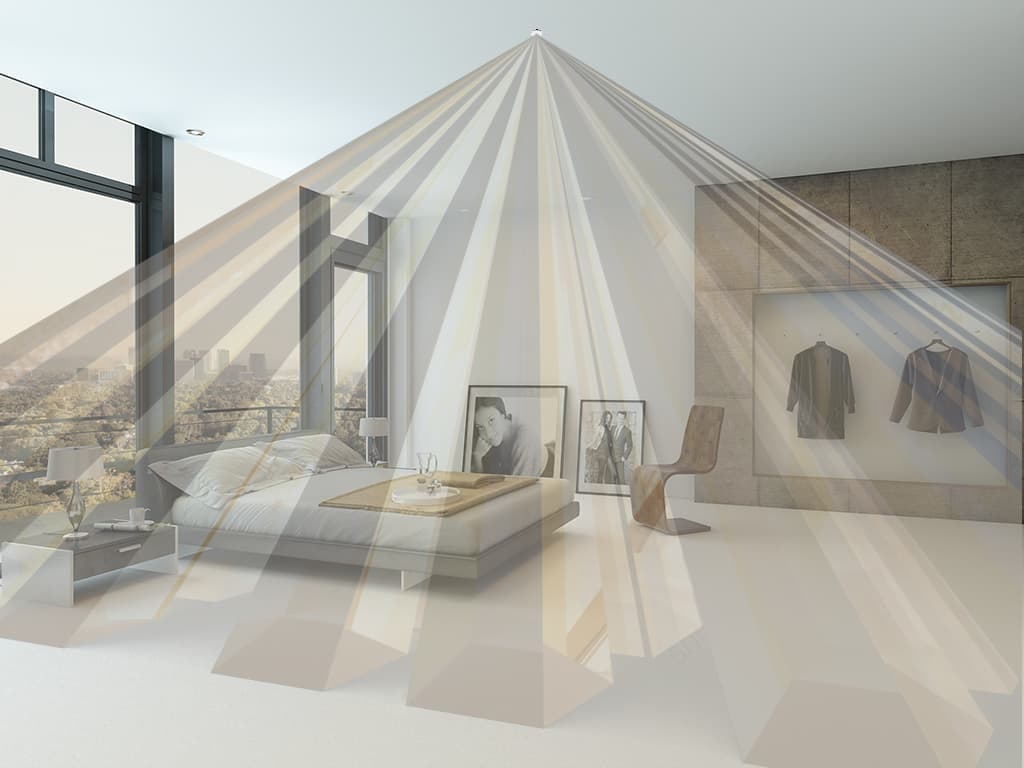

When mounted at a height of 3M, the sensor covers an ~8M diameter floor area. When mounted at 2.5M, it covers a floor area of 5.6M by 6.6M. The Motion Sensor 360 introduces a robust, discrete and stylish option for your smart home.

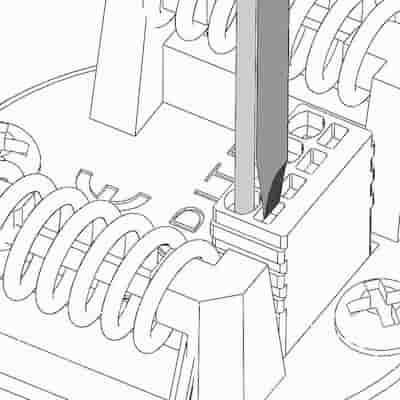

Push-fit connector technology makes installation quick and easy

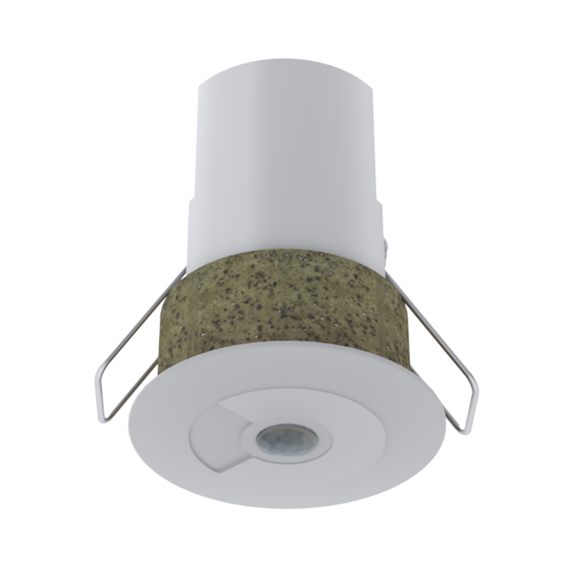

Fire rated option
The Fire IDR is specially made by Envirograf® for use with the Motion Sensor 360 range. It is designed to fire rate installations of the Motion Sensor 360 range, according to Document B of Building Regulations (BS476: Part 21 1987).
It is a lightweight metal unit containing intumescent material that expands in a fire, holding the unit in place while sealing the hole in the ceiling structure. With the Fire IDR fitted, the Motion Sensor 360 range can be installed in ceilings with a 1 hour fire rating.
If you are installing the sensor in a fire rated ceiling then select the fire rated option and we will ship you the sensor and a Fire IDR.
To install the Faradite sensor, cut a 35mm hole using a suitable hole saw (40mm for fire rated). Fold the spring clips upwards and push through the hole.
5V-24V DC @ 24V (3mA)
Range / Detection Area
Specified Range 5M / When mounted at a height of 3M, the sensor covers an ~8M diameter floor area. When mounted at 2.5M, it covers a floor area of 5.6M by 6.6M.

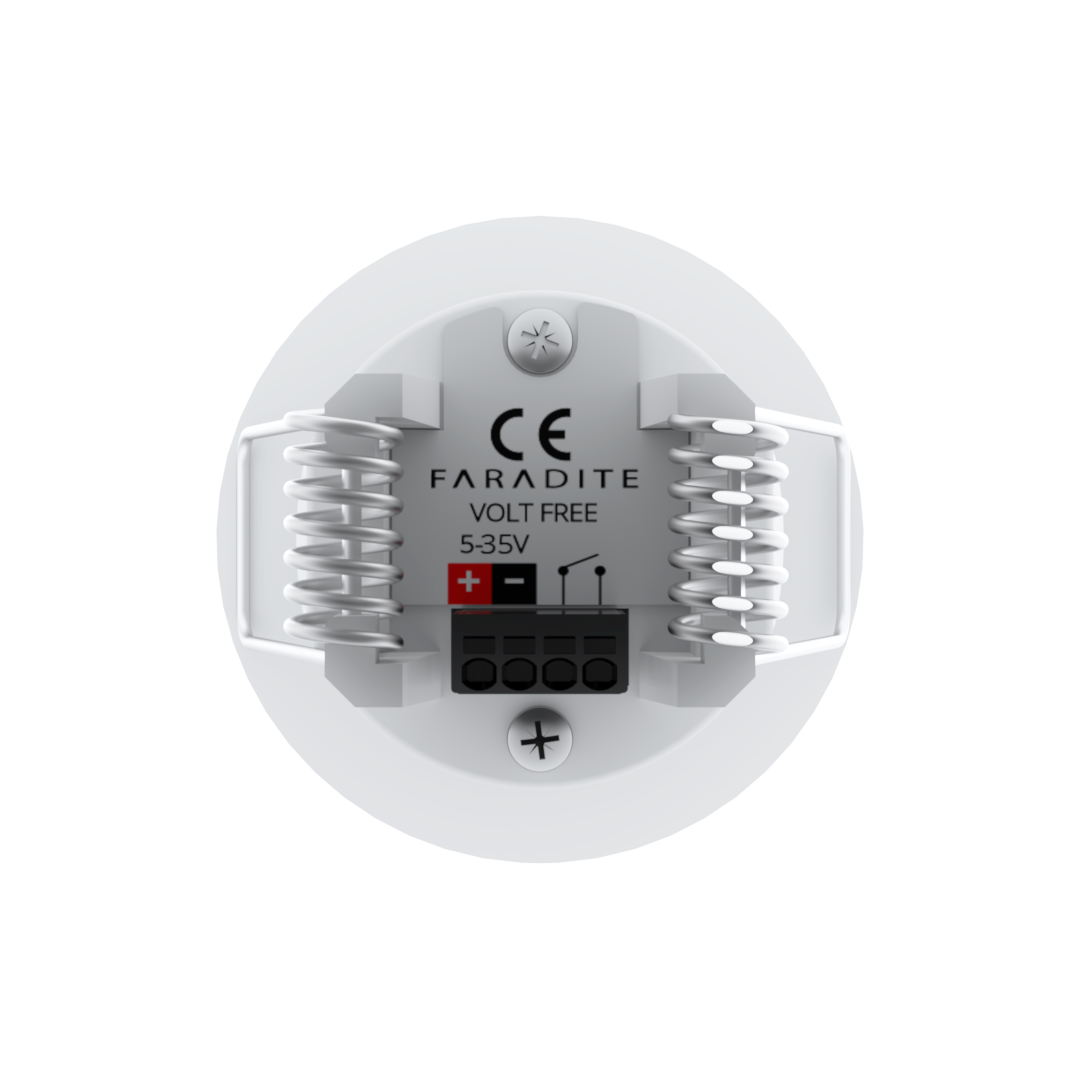

Push fit screwless connector AWG 20- 24 suitable for CAT5 / CAT6 / CAT7
