MOTION SENSOR 360 PLASTER IN - KNX

£ 184.00
In stock
SHIPPING | TAXES | ORDERING
SKU M360-PI-KNX

Notify me when back in stock

The Motion Sensor 360 - Plaster in raises the bar for discreet automation. This plaster-in version of our widely popular Motion Sensor 360 PIR offers discerning custom installers a near invisible PIR for automating lighting, heating, AV and much more.

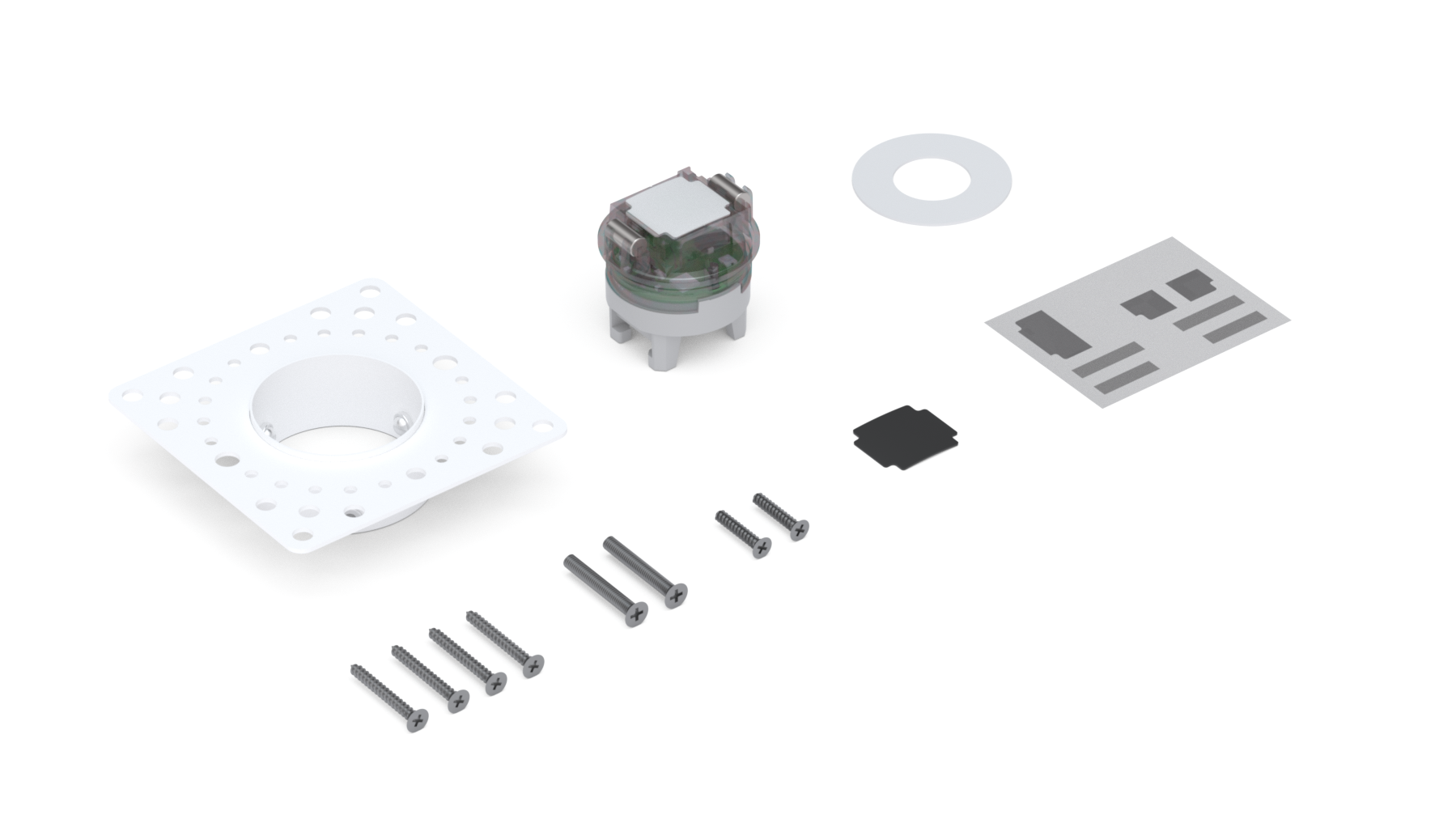

This ultra discreet, completely flat PIR is made up of three main components: the machined aluminium plaster in mount, the sensor technology insert and the paintable front disc.

We have also added the option to mask the sensor detection area with the Motion Sensor 360 - Plaster-in sensor. Small, infrared blocking stickers are supplied with the sensor and can be applied to the sensor providing a customisable PIR solution without any visual impact on the finished sensor.

Designed to be installed directly in to plasterboard, or optionally in UK or EU back box.

Meticulously designed to deliver the ultimate discreet motion sensing solution.

- KNX technology with multiple concurrent functions and advanced parameters

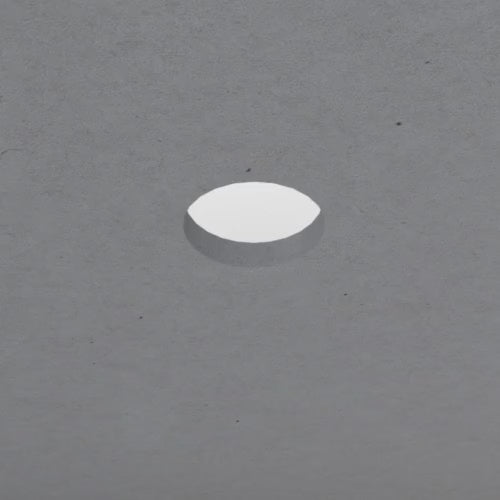

- Just 14mm visible PIR lens
- Primed front disc can be painted for further blending in to finished surface
- Invisible masking solution

KNX Features

The sensor can have up to 4 independent functions each with independent timeouts and configuration parameters. The range of functions each function can perform are: Switching, Dimming Value Transmitter, Scene, HVAC, Advanced (value transmitting including RGB) and Constant light control.

The Constant light control feature (daylight harvesting) ensures a set brightness / lux level is achieved by dynamically dimming the lighting in the room. The Faradite Motion Sensor 360 - KNX also allows for the brightness setpoint to be set via group object. A standby dimming level can be also be set.

Day / Night modes are available for each of the 4 independent functions allowing each to perform differently during day and night, with different timeouts if required.

Also, the master / slave functionality allows KNX installers to expand the detection capabilities of the PIR.

Advanced push button input functionality allows users to manually interact with the motion sensor by extending timeouts, blocking the sensor and more.

Also, a finely tuned internal brightness sensor accurately measures the Lux level in the room (external brightness group object available) no matter the light source, meaning fluorescent lamps, LEDs or halogen/incandescent lamps can all be accurately measured.

4 operating modes allow various levels of automation to be configured meaning the sensor can be configured as fully automatic (Auto on / off), absence (manual on, auto off), presence (auto on, manual off) or fully manual (manual on, manual off).

Long motion detection can be configured (separately across each function if required) to trigger different actions depending on the length of time a person is detected. E.g. lights may come on instantly when motion is detected, but using long presence detection on the second function for HVAC control can mean the Air conditioning is only turned to comfort mode if motion is detected multiple times in a set length of time.

There are a range of powerful diagnostic tools available for the KNX integrator including a visual LED for detection validation, simple test modes for validating performance and a heartbeat mode to monitor devices KNX bus connection.

The latest ETS .knxprod file can be downloaded in ETS using the online catalogue. This product can only be used with ETS5 and ETS6.

DOWNLOAD - PDF DATASHEET

The ultra discreet PIR with massive capabilities powered by

ABSOLUTELY
PLASTERED

ABSOLUTELY PLASTERED

The Motion Sensor 360 Plaster In raises the bar for discreet motion detection.

INSTANT INVISIBILITY
Black Faradite Motion Sensor 360 Volt Free dry contact push fit terminals

PLATE UP

Cut hole and mount the plaster-in plate to the plasterboard.

Black Faradite Motion Sensor 360 Volt Free dry contact connected cable

PLASTER & PAINT

Skim the surface to create the finished aperture and paint to finish the surface.

Black Faradite Motion Sensor 360 Volt Free dry contact terminals

FINISH UP

Click in the tech insert and offer up the magnetic front disk to finish the install.

1 SENSOR, 4 FUNCTIONS, 6 FUNCTION TYPES

The Motion Sensor 360 - KNX can perform 4 independent functions and has 6 function types to choose from including switching, dimming value, scenes, HVAC, constant lighting control and advanced value sending with 10 different object types.

technical specification



iNSTALLATION


To install the Motion Sensor 360 - Plaster In - KNX, fit the mounting plate in plasterboard. Next plaster and paint the surface. Finally insert the tech insert and offer up magnetic front disk to complete.



pOWER sUPPLY


30V DC (KNX Bus)



CONNECTOR


The KNX bus is connected using the supplied Wago connectors.



RANGE / DETECTION AREA


Specified Range 5M / When mounted at a height of 3M, the sensor covers an ~8M diameter floor area. When mounted at 2.5M, it covers a floor area of 5.6M by 6.6M. When Installed vertically a max range of 5M should be observed. The sensor may be triggered by movement up to 9M away in certain circumstances.

RAISING THE BAR FOR DISCREET AUTOMATION

MASKING

A selection of included masking stickers allow the sensor detection range to be tailored to suit the installation requirements.


QUARTER BLOCKED

HALF BLOCK

MOUNTING OPTIONS
Black Faradite Motion Sensor 360 Volt Free dry contact push fit terminals

UK BACKBOX

Holes for galvanised metal UK backboxes.

Black Faradite Motion Sensor 360 Volt Free dry contact terminals

PLASTERBOARD

Mount directly to plasterboard panel before plastering.

Black Faradite Motion Sensor 360 Volt Free dry contact terminals

EU BACKBOXES

Holes for round European style back boxes

DIMENSIONS
Black Faradite Motion Sensor 360 Volt Free dry contact connected cable
Black Faradite Motion Sensor 360 Volt Free dry contact push fit terminals
Black Faradite Motion Sensor 360 Volt Free dry contact terminals
