MOTION SENSOR 360 BLACK- VOLT FREE

£ 56.00
SKU M360-B-VOLF

Notify me when back in stock

The Faradite Motion Sensor 360 Black - Volt Free is a 5-24V low profile, silent, discreet passive infrared ceiling mounted motion sensor. Protruding only 3.5mm from the ceiling its discreet look and miniature size does not detract from the décor and architecture of your home.

The sensor can be used to automate your lighting control for an energy efficient and comfortable smart home experience.

The sensor can be used with 5-24V home/building/lighting control systems that have volt free / dry contact inputs, such as Lutron, Crestron, Loxone and Control4.

When installing the sensor in a fire rated ceiling please select the fire rated option.

When the Fire IDR is fitted the sensor is fire rated for 60 minutes.

Discreet motion sensing for the ultimate smart home

Simply connects to multiple systems

Simply Connects to Multiple Systems

The sensor can be connected directly to a Control4 system using a simple contact closure.

The sensor can be connected directly to a Loxone smart home using a single digital input.

Rako systems can benefit from the Faradite Motion Sensor 360 - Volt Free with easy integration.

Great with Lutron lighting control systems by using any contact closure input.

Benefits


100% Silent relay


No annoying 'Click'. The Motion Sensor 360 range uses a completely silent, solid state relay.



Low profile


A subtle stylish sensor that protrudes less than 3.5mm from the ceiling.



Very Small


So small it can be mounted in a business card. The visible front is just 49mm across.



DC power


Low voltage power, ideal for a broad range of control systems.

Our motion sensors use the latest digital sensors

SMALL AND EFFECTIVE

Here at Faradite, design is everything, but, not at the compromise of functionality. During the design of the Motion Sensor 360 range we wanted to keep the profile to a minimum. The result, a high spec digital sensor that only protrudes 3.5mm from the ceiling.

The Motion Sensor 360 range introduces a robust, discrete and stylish option for your smart home.

PUSH-FIT TECHNOLOGY

PUSH-FIT INSTALLATION

Our connectors make for a speedy installation, simply strip the solid core wire and push into the connector

REMOVE CABLE

Simply insert the supplied tool or a small screwdriver to release the wire

REMOVABLE CONNECTORS

To remove the sensor, simply pull the connector out of the motion sensor. It couldn't be simpler

FIRE RATED OPTIONS

The Fire IDR is specially made by Envirograf® to fire rate the Motion Sensor 360 range, according to BS476: Part 21 1987.The intumescent material expands in a fire, sealing the hole in the ceiling structure.


With the Fire IDR fitted, the Motion Sensor 360 has a 60 minute fire rating.


If you are installing the sensor in a fire rated ceiling then select the fire rated option and we will ship you the sensor and a Fire IDR.

DIMENSIONS
technical specification



iNSTALLATION


To install the Faradite sensor, cut a 35mm hole using a suitable hole saw (40mm for fire rated). Fold the spring clips upwards and push through the hole.

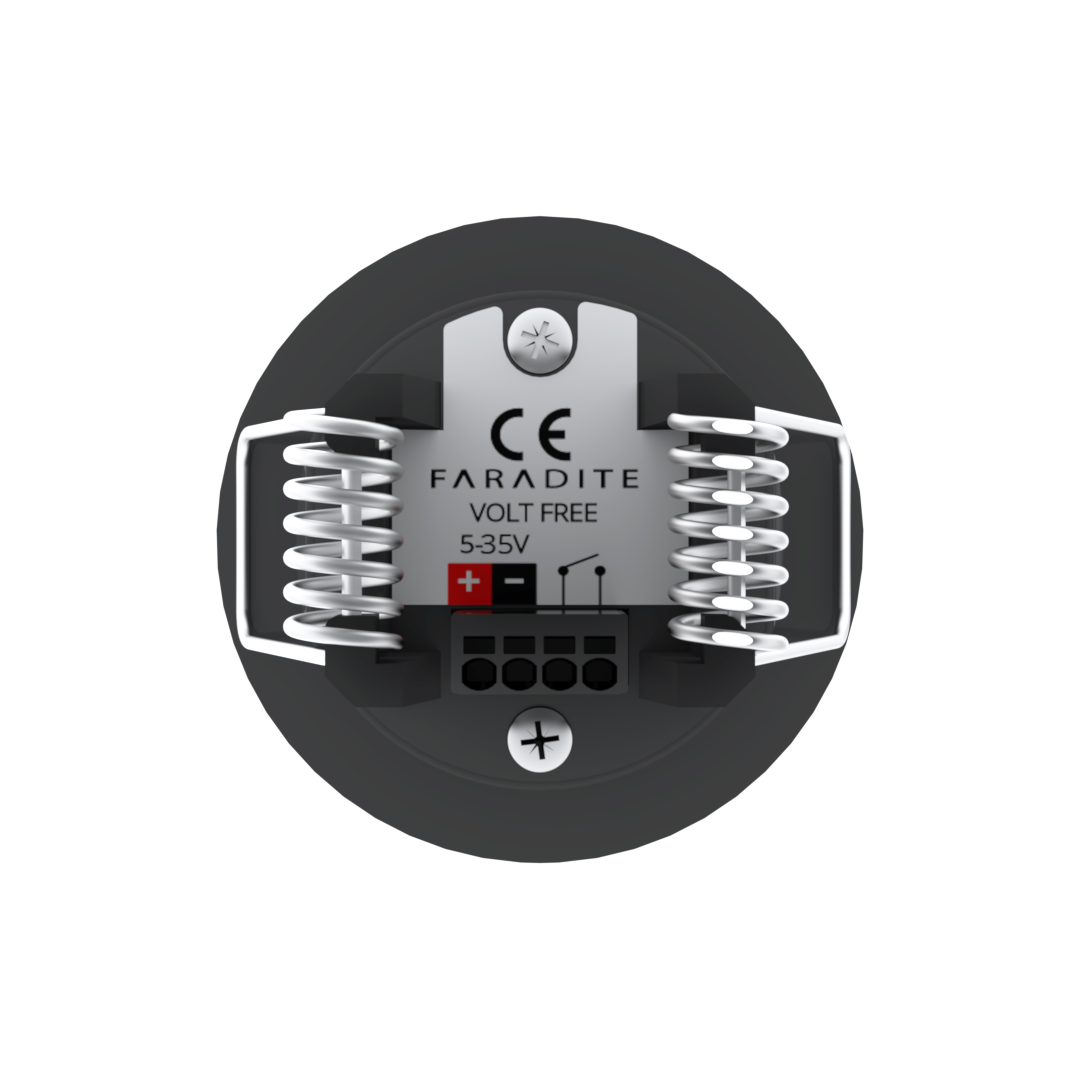

CONNECTIONS



5V-35V DC @ 24V (3mA)

Volt Free Output (Normally Open)



CONNECTOR


Push fit screwless connector AWG 20- 24 suitable for CAT5 / CAT6 / CAT7.




RANGE / DETECTION AREA


Specified Range 5M / When mounted at a height of 3M, the sensor covers an ~8M diameter floor area. When mounted at 2.5M, it covers a floor area of 5.6M by 6.6M.

CABLE TYPES

CAT 5/6

Ideal for CAT 5/6, simply strip the solid core wire and push into the connector

CAT 7

Ideal for CAT 7, simply strip the solid core wire and push into the connector

STRANDED CABLE

Ideal for stranded cable (e.g. Belden Cable), simply insert the supplied sim card remover tool before pushing the wire into the connector
