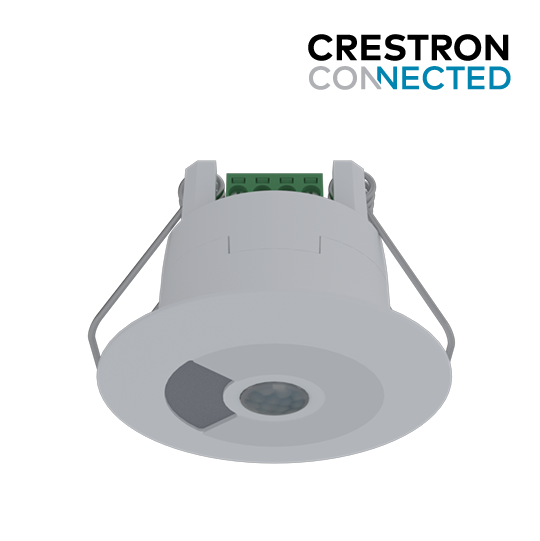

MOTION SENSOR 360 WHITE - CRESNET

MOTION SENSOR 360 WHITE - CRESNET

£ 136.50
In stock
SHIPPING | TAXES | ORDERING
SKU M360-W-CRES

Notify me when back in stock

At just 49mm, the Motion Sensor 360 - Cresnet® is a powerful yet discreet addition to any Crestron project. This Crestron Connected® multi technology sensor features the latest PIR technology, a brightness sensor and a temperature sensor* (*cannot be utilised when used on Crestron home® systems). Supports seamless integration into Crestron and Crestron Home® platforms through the Cresnet® protocol.

Crestron users can create powerful automation using the features included in the Motion Sensor 360 - Cresnet® and integrate with keypads in the room to create advanced forced occupancy and forced vacancy functions.

DOWNLOAD - PDF DATASHEET
Download - Instruction Manual

The mini sensor with massive capabilities powered by

Complete range of Faradite TAP home automation switches laying flat on a white surface

Extensive ETS options

DEVOTION TO THE DETAIL

FULLY ARM-ED


The ARM cortex CPU ensures fast response.



SENSOR SPECTACULAR


Industry leading PIR motion sensor component.



LIGHT WORK


The hyper accurate brightness sensor reads the room LUX 100 times a second.



ADVANCED PUSH BUTTON CONTROL

Increase timeouts, manually turn off lights, temporarily block the motion sensor, and more!

BLACK AND WHITE


Deliver discreet in light or dark ceilings. The Motion sensor 360 - Cresnet® is ideal whether installed in a dark cinema room or bright living room.

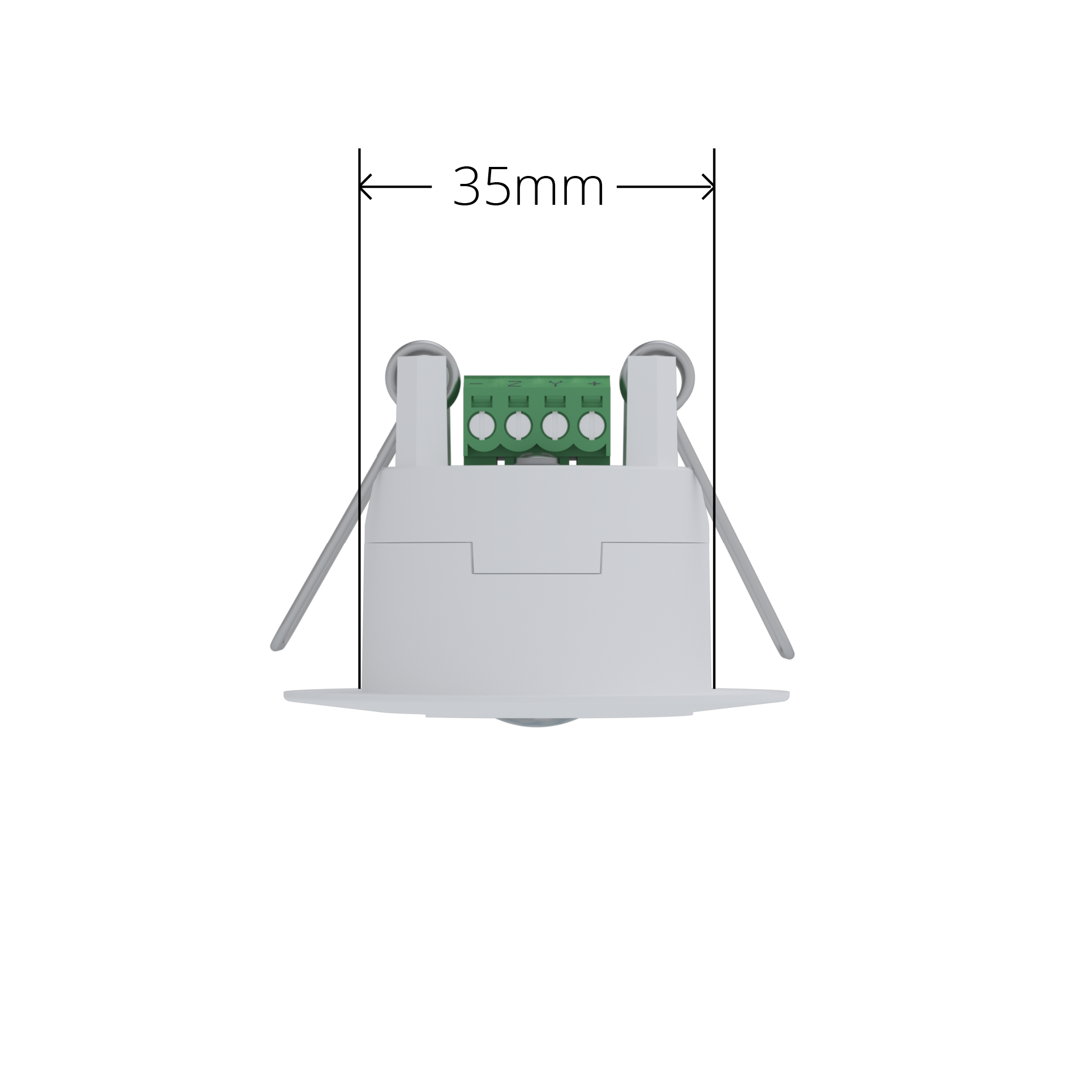

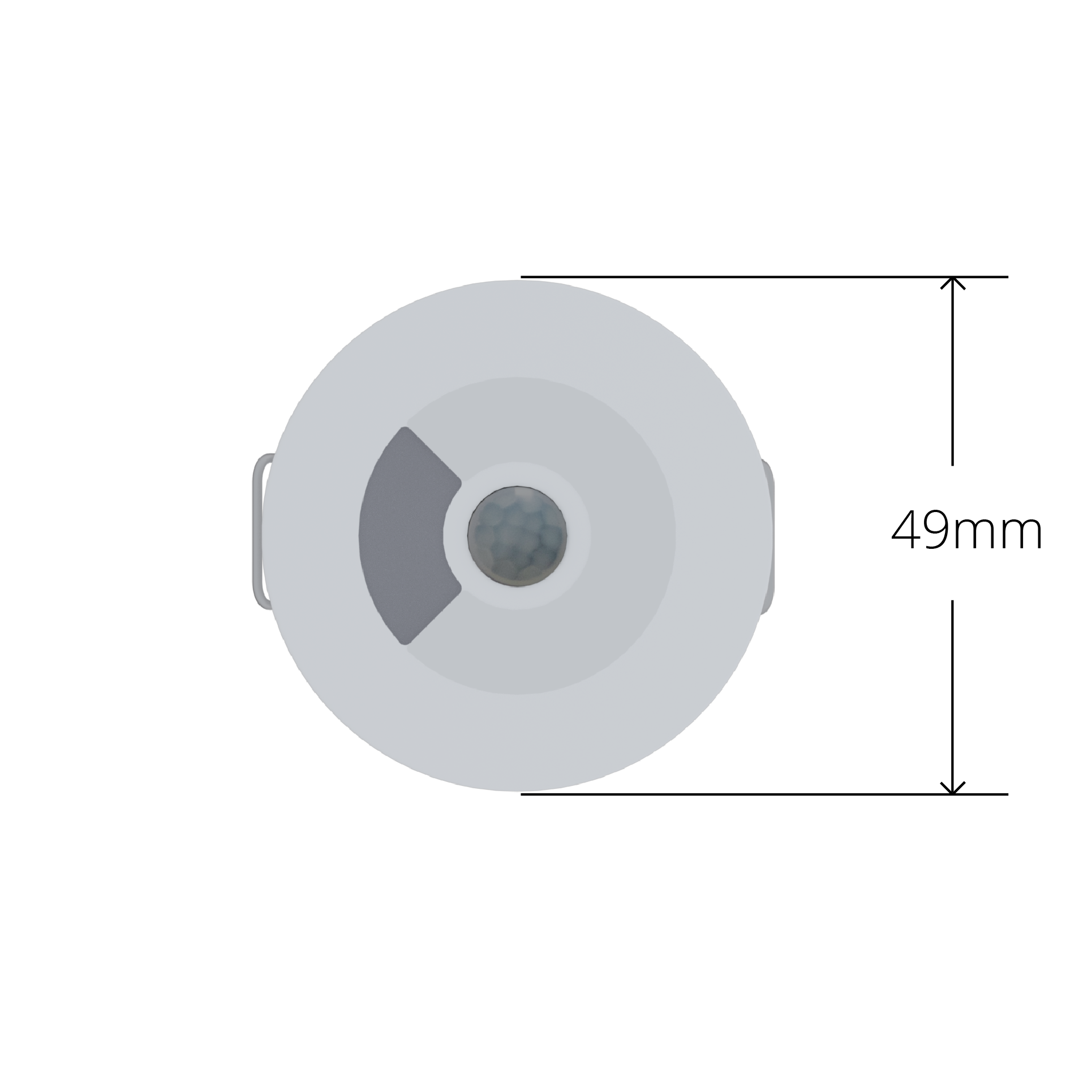

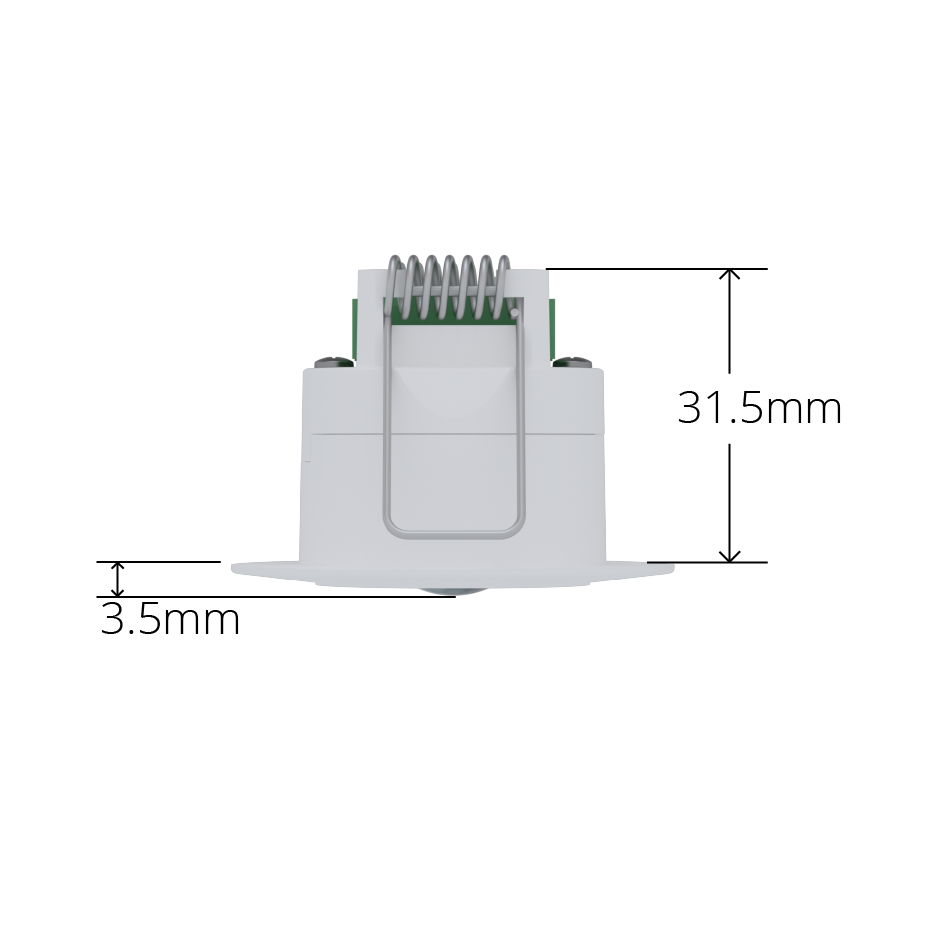

DIMENSIONS
Black Faradite Motion Sensor 360 Volt Free dry contact push fit terminals
Black Faradite Motion Sensor 360 Volt Free dry contact connected cable
Black Faradite Motion Sensor 360 Volt Free dry contact terminals

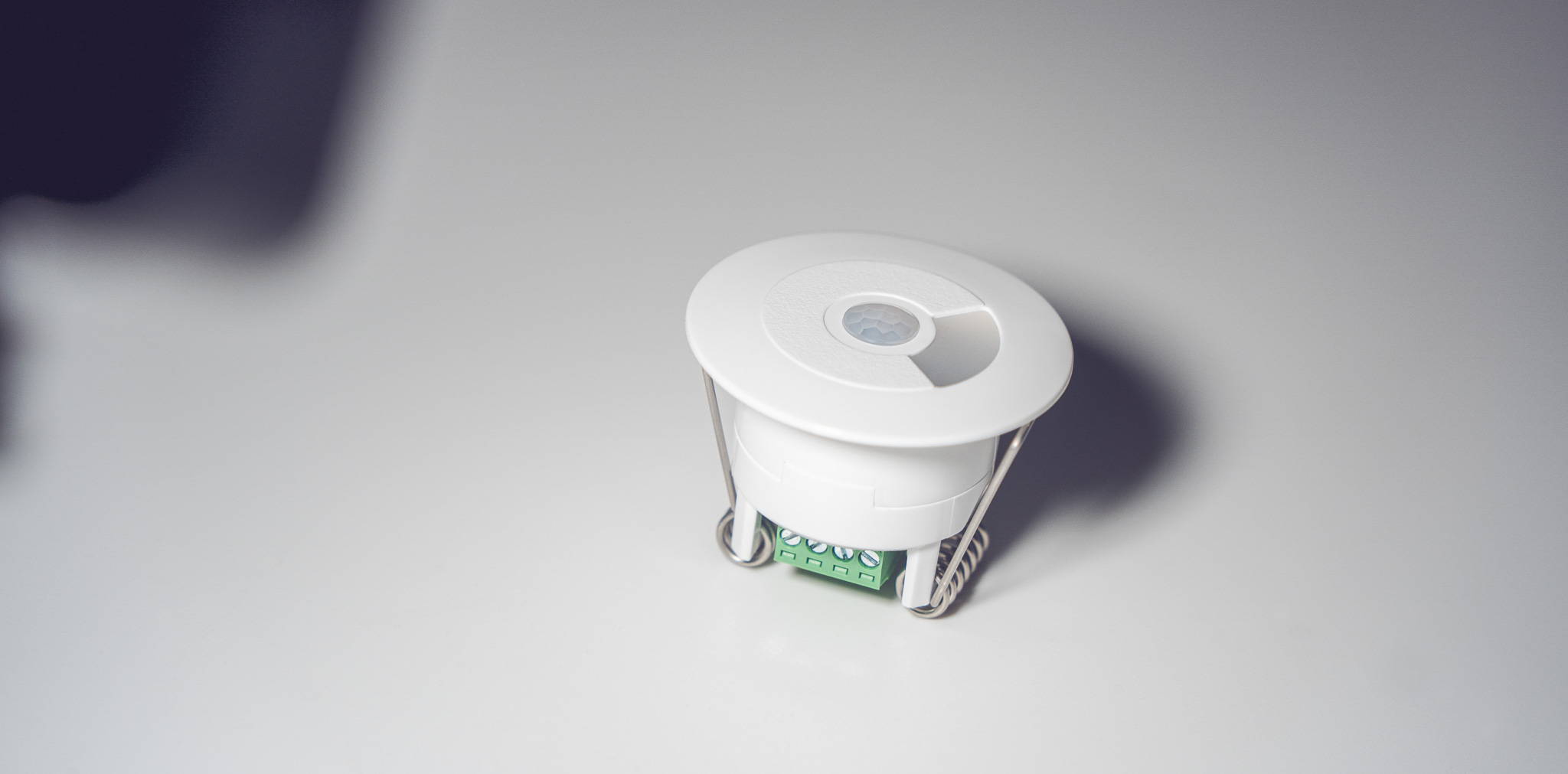

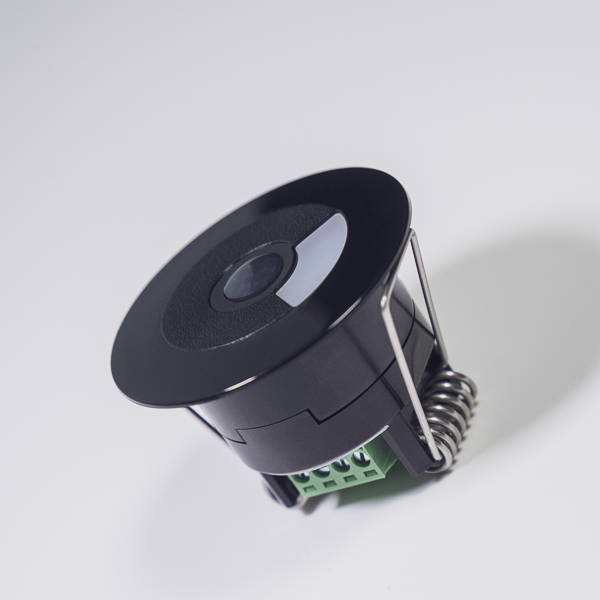

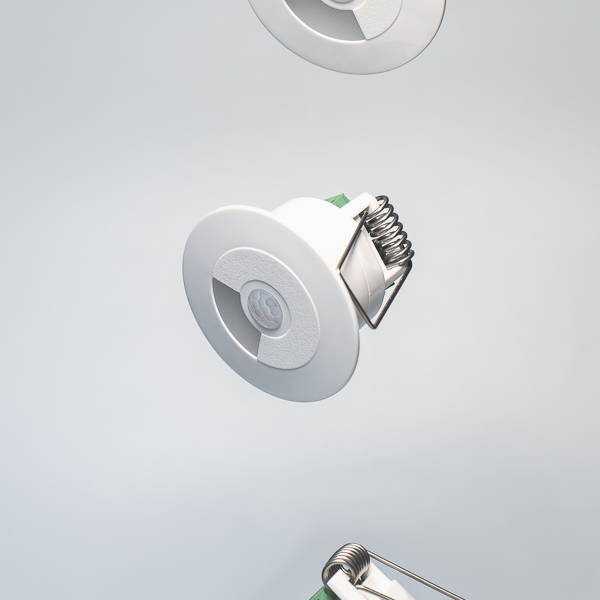

Crestron connected motion sensor
Crestron connected motion sensor

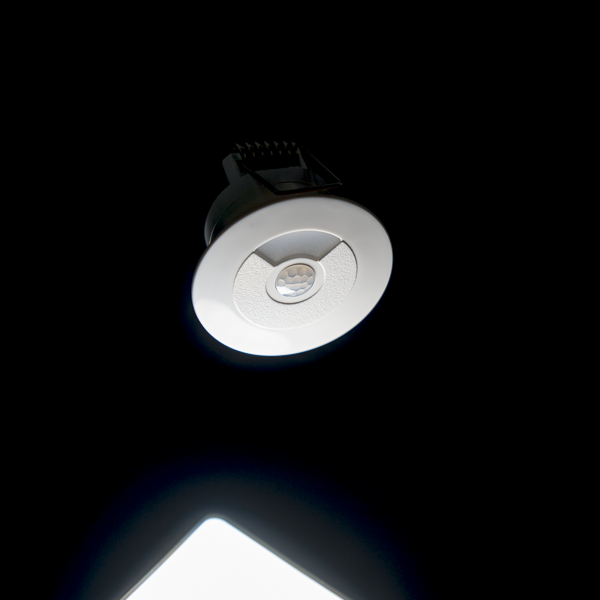

Crestron connected motion sensor in dark space

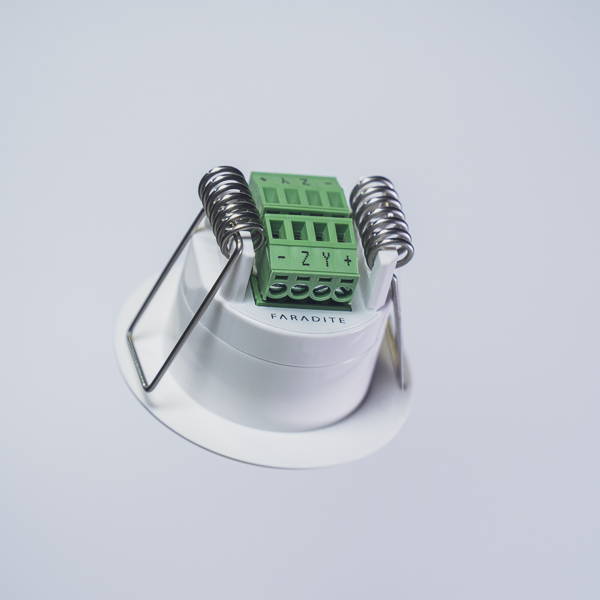

Crestron connected motion sensor back with connectors
SINGLE DEVICE - MULTIPLE SENSORS


PIR


Our tried and tested PIR sensors ensure rapid and reliable detection.



TEMPERATURE


The built in temperature sensor provides Crestron user with room temperature date for unparalleled comfort.



BRIGHTNESS


Measure the LUX in the room with the integrated brightness sensor to create logic using current room LUX.


technical specification


iNSTALLATION


The Motion Sensor 360 - Cresnet® requires a 35mm hole to be flush mounted. Connect the Cresnet® bus, retract springs, and offer the sensor up into the 35mm hole.


pOWER sUPPLY


24V DC (Cresnet® Bus)


CONNECTOR

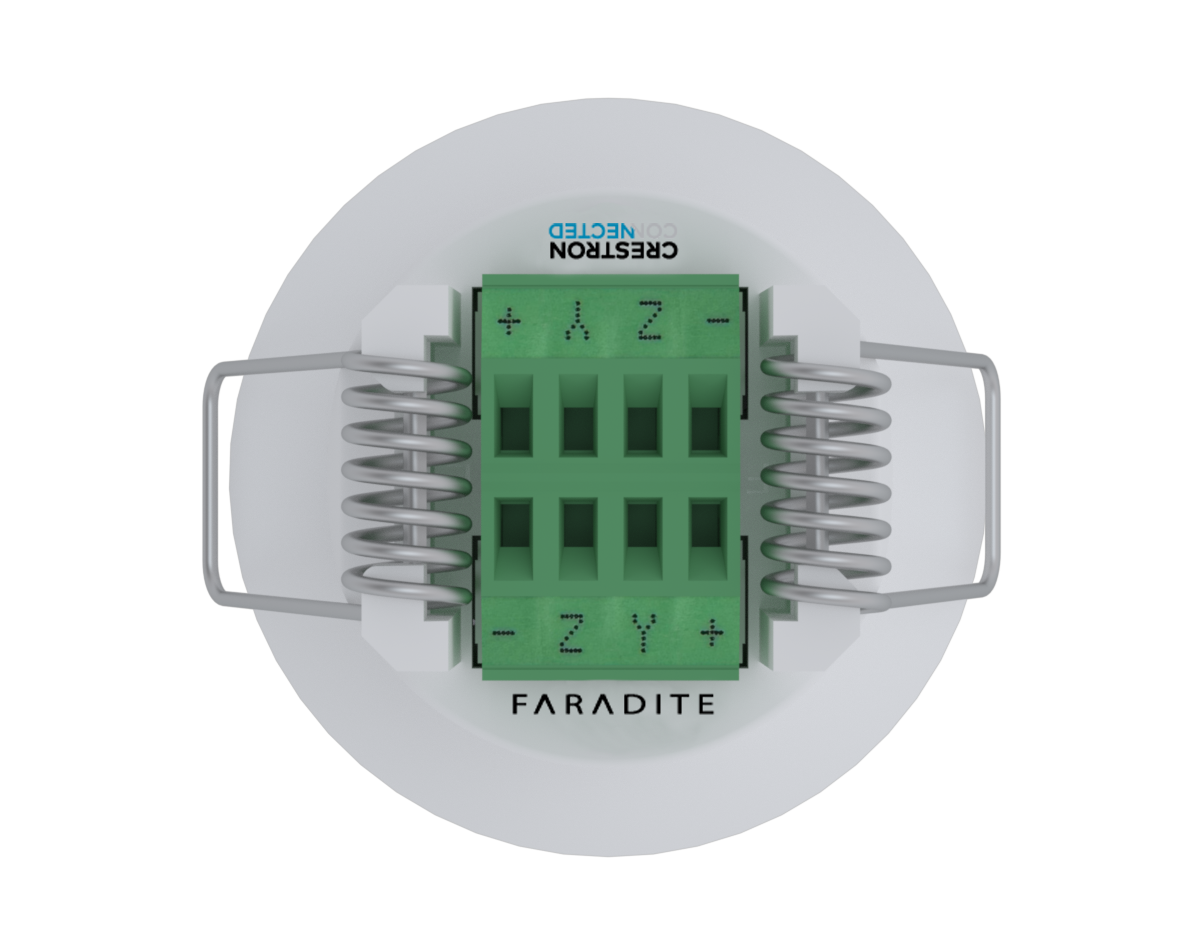

The Cresnet® bus is connected using the supplied connectors with all terminals clearly marked.


RANGE / DETECTION AREA


Specified Range 5M / When mounted at a height of 3M, the sensor covers an ~8M diameter floor area. When mounted at 2.5M, it covers a floor area of 5.6M by 6.6M. When Installed vertically a max range of 5M should be observed. The sensor may be triggered by movement up to 9M away in certain circumstances.
