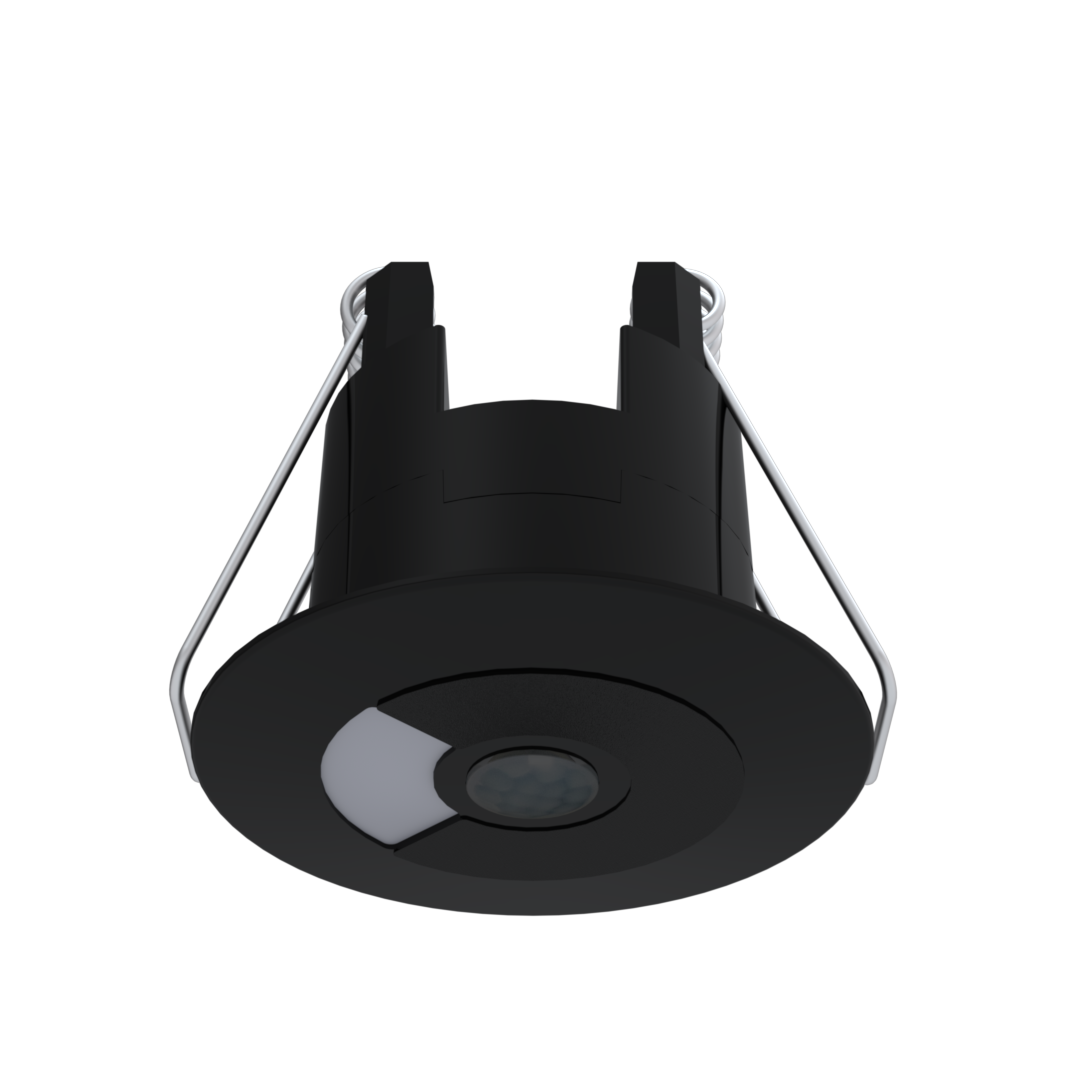

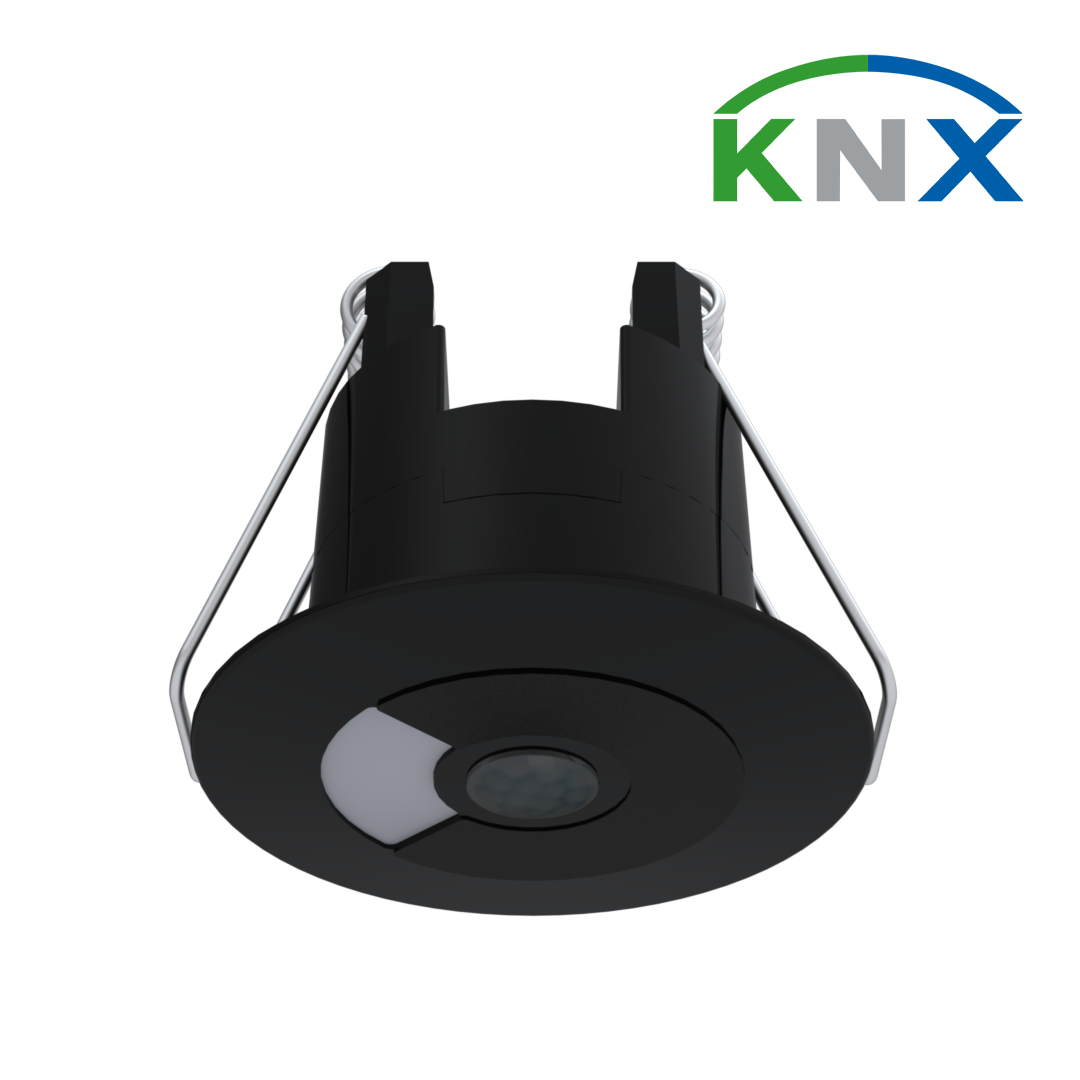

MOTION SENSOR 360 BLACK- KNX

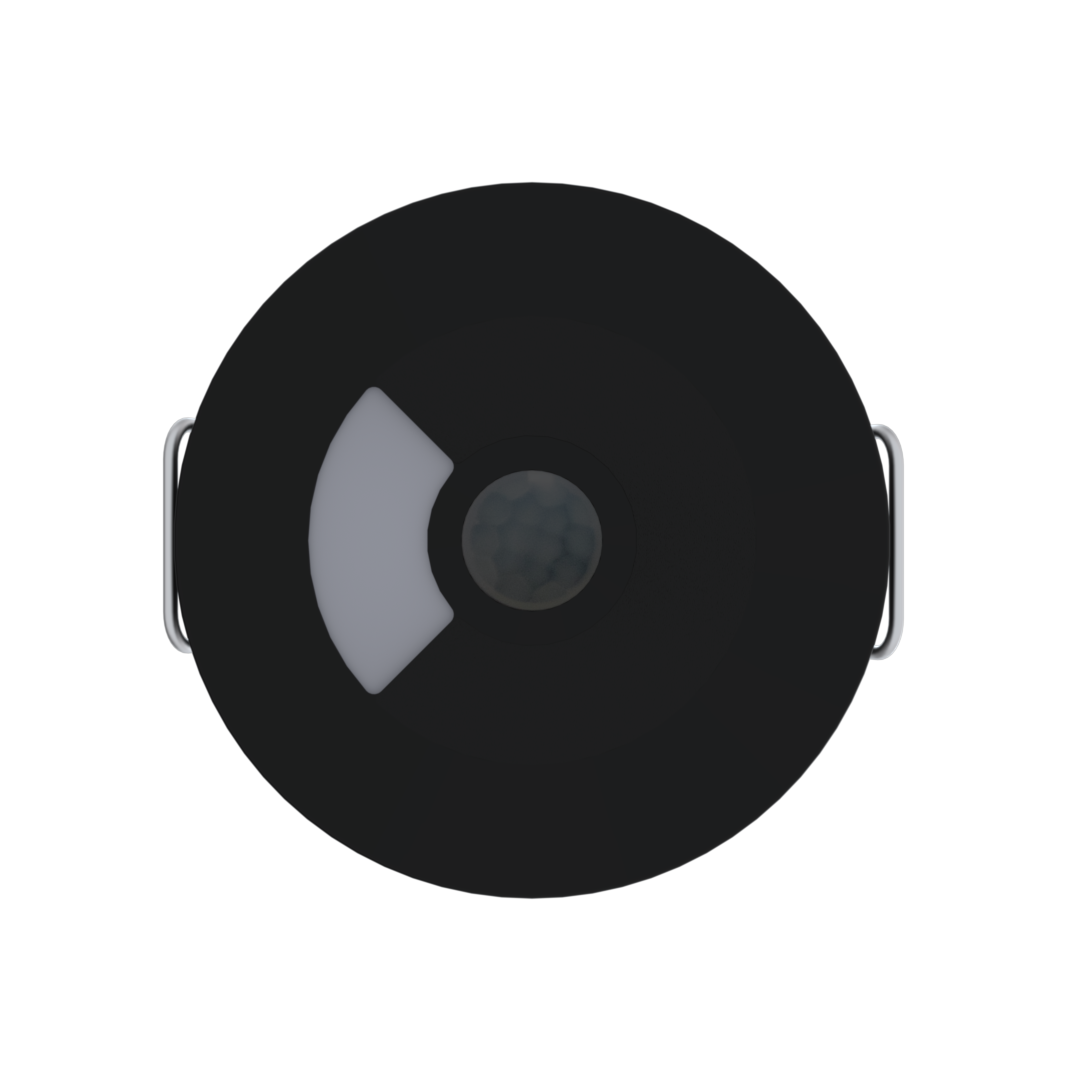

With just a 49mm diameter, the Faradite Motion Sensor 360 - KNX is a remarkably small KNX PIR sensor with a huge set of functions. The sensor is designed to provide a range of functions for both residential and commercial KNX installations alike.

The sensor can have up to 4 independent functions each with independent timeouts and configuration parameters. The range of functions each fucntioncan perform are: Switching, Dimming, Scene, HVAC, Advanced (value transmitting including RGB) and Constant light control.

The Constant light control feature (daylight harvesting) ensures a set brightness / lux level is achieved by dynamically dimming the lighting in the room. The Faradite Motion Sensor 360 - KNX also allows for the brightness setpoint to be set via group object. A standby dimming level can be also be set.

Day / Night modes are available for each of the 4 independent functions allowing each to perform differently during day and night, with different timeouts if required.

Also, the master / slave functionality allows KNX installers to expand the detection capabilities of the PIR.

Advanced push button input functionality allows users to manually interact with the motion sensor by extending timeouts, blockingthe sensor and more.

Also, a finely tuned internal brightness sensor accurately measures the Lux level in the room (external brightness group object available) no matter the light source, meaning fluorescent lamps, LEDs or halogen/incandescent lamps can all be accurately measured.

4 operating modes allow various levels of automation to be configured meaning the sensor can be configured as fully automatic (Auto on / off), absence (manual on, auto off), presence (auto on, manual off) or fully manual (manual on, manual off).

Long motion detection can be configured (separately across each function if required) to trigger different actions depending on the length of time a person is detected. E.g. lights may come on instantly when motion is detected, but using long presence detection on the second function for HVAC control can mean the Air conditioning is only turned to comfort mode if motion is detected multiple times in a set length of time.

There are a range of powerful diagnostic tools available for the KNX integrator including a visual LED for detection validation, simple test modes for validating performance and a heartbeat mode to monitor devices KNX bus connection.

DOWNLOAD PDF DATASHEET

The mini sensor with massive capabilities powered by

1 SENSOR, 4 FUNCTIONS, 6 FUNCTION TYPES

The Motion Sensor 360 - KNX can perform 4 independent functions and has 6 function types to choose from including switching, dimming value, scenes, HVAC, constant lighting control and advanced value sending with 10 different object types.

PACKED WITH TECHNOLOGY
DEVOTION TO
THE DETAIL

FULLY ARM-ED

The ARM cortex CPU ensures fast response, every time.

SENSOR SPECTACULAR

Industry leading PIR motion sensor component.

LIGHT WORK

The hyper accurate brightness sensor reads the room LUX 100 times a second.

CONSTANT LIGHT CONTROL

The constant light control function guarantee the brightness setpoint is constantly achieved in the space. The highly sensitive light sensor ensures daylight harvesting is smooth, accurate and rapid.

Complete range of Faradite TAP home automation switches laying flat on a white surface
ADVANCED PUSH BUTTON CONTROL

Increase timeouts, manually turn off lights, temporarily block the motion sensor, set brightness setpoint (constant light control), and more!

Extensive ETS options

NIGHT MODE

When in night mode, the same sensor can trigger different events when motion is detected at night.

1 SENSOR, 4 FUNCTIONS, 6 FUNCTION TYPES

The Motion Sensor 360 - KNX can perform 4 independent functions and has 6 function types to choose from including switching, dimming value, scenes, HVAC, constant lighting control and advanced value sending with 10 different object types.

PACKED WITH TECHNOLOGY

DEVOTION TO THE DETAIL
Black Faradite Motion Sensor 360 Volt Free dry contact push fit terminals

FULLY ARM-ED

The ARM cortex CPU ensures fast response.

Black Faradite Motion Sensor 360 Volt Free dry contact connected cable

SENSOR SPECTACULAR

Industry leading PIR motion sensor component.

Black Faradite Motion Sensor 360 Volt Free dry contact terminals

LIGHT WORK

The hyper accurate brightness sensor reads the room LUX 100 times a second.

CONSTANT LIGHT CONTROL

The constant light control function guarantees the brightness setpoint is constantly achieved in the room. The highly sensitive light sensor ensures daylight harvesting is smooth, accurate and rapid.

This powerful feature is great for commercial spaces where a minimum lux level must be achieved at all times and can be combined the Master/Slave feature to deliver constant light control in larger spaces with varying levels of natural light.

ADVANCED PUSH BUTTON CONTROL


On the press of a push button, increase timeouts, manually turn off lights, temporarily block the
motion sensor, set brightness setpoint (constant light control), and more!

For example a tap on the light switch would turn the light off and block the motion
sensor f
rom detection motion for enough time for the user to leave the room.

Extensive ETS options

Faradite matt white TAP-1 mounted on a kitchen wall used with Loxone
Faradite Brushed Copper TAP-5 on Loxone system
DAY MODE

Configure separate functionality depending on motion events detected during day time and night time.


e.g. Motion detected in the living room during the day mode  may bring on the 'daytime' light scene, set HVAC to comfort and control LED lights to set colour.

NIGHT MODE

When in night mode, the same sensor can trigger different events when motion is detected at night.


e.g. Motion detected in the living room during the night mode can just bring on a 'Dimmed' lighting scene.

1 SENSOR, 4 FUNCTIONS, 6 FUNCTION TYPES

The Motion Sensor 360 - KNX can perform 4 independent functions and has 6 function types to choose from including switching, dimming value, scenes, HVAC, constant lighting control and advanced value sending with 10 different object types.

PACKED WITH TECHNOLOGY
DEVOTION TO THE DETAIL

FULLY ARM-ED


The ARM cortex CPU ensures fast response.



SENSOR SPECTACULAR


Industry leading PIR motion sensor component.



LIGHT WORK


The hyper accurate brightness sensor reads the room LUX 100 times a second.



CONSTANT LIGHT CONTROL

The constant light control function guarantee the brightness setpoint is constantly achieved in the space. The highly sensitive light sensor ensures daylight harvesting is smooth, accurate and rapid.

ADVANCED PUSH BUTTON CONTROL

Increase timeouts, manually turn off lights, temporarily block the motion sensor, set brightness setpoint (constant light control), and more!

NIGHT MODE

When in night mode, the same sensor can trigger different events when motion is detected at night.

DAY MODE

Configure separate functionality depending on motion events detected during day time and night time.

DAY MODE

Configure separate functionality depending on motion events detected during day time and night time.

BLACK AND WHITE


Deliver discreet in light or dark ceilings. The Motion sensor 360 - KNX is ideal whether installed in a dark cinema room or bright living room.

DIMENSIONS
Black Faradite Motion Sensor 360 Volt Free dry contact push fit terminals
Black Faradite Motion Sensor 360 Volt Free dry contact connected cable
Black Faradite Motion Sensor 360 Volt Free dry contact terminals
Faradite TAP-5 smart home light switch on decorative wall
Complete range of Faradite TAP home automation switches laying flat on a white surface
Faradite Brushed Copper TAP-5 on Loxone system
Faradite matt white TAP-1 mounted on a kitchen wall used with Loxone
technical specification



iNSTALLATION

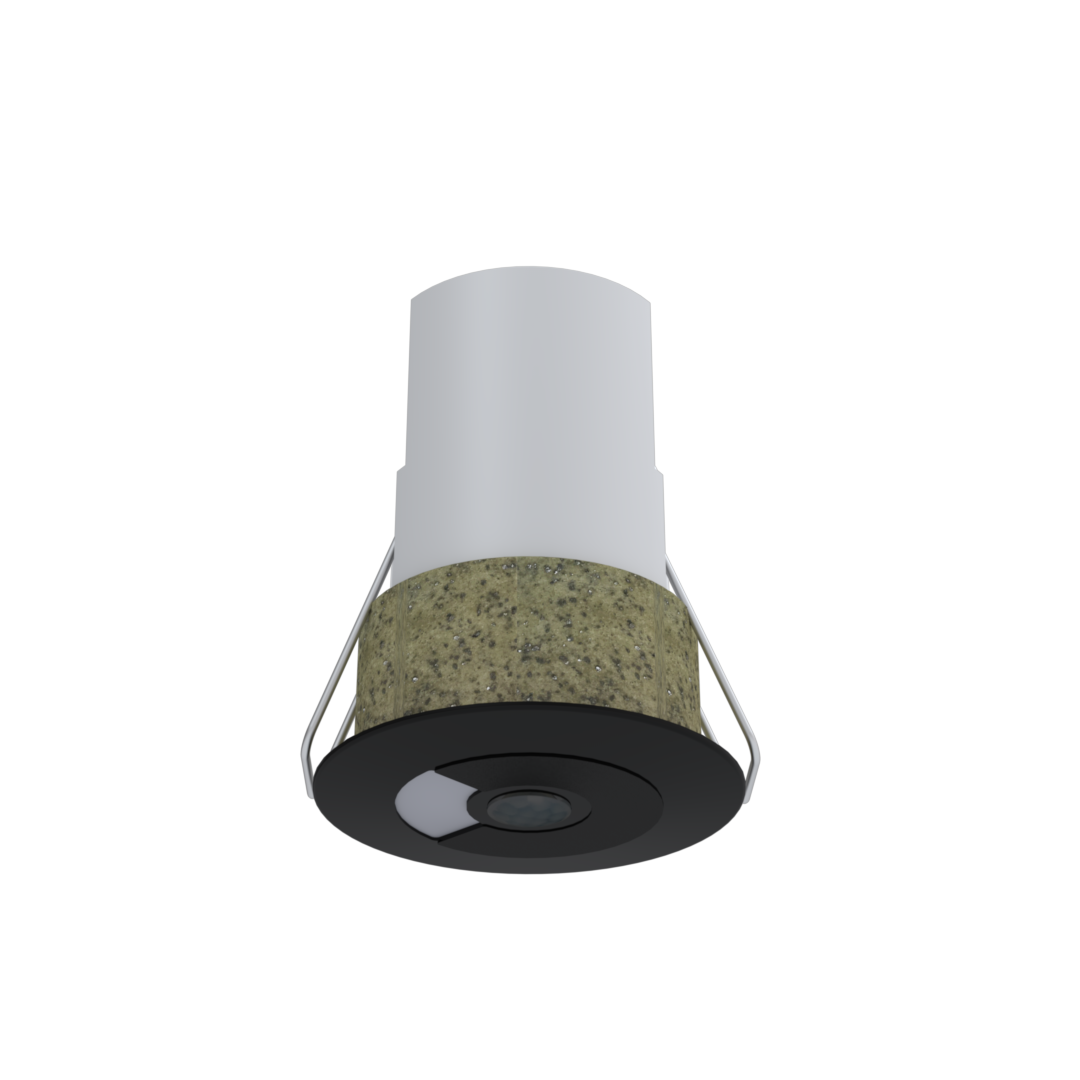

The Motion Sensor 360 - KNX required a 35mm hole to be flush mounted. Connect the KNX bus, retract springs, and offer the sensor up into the 35mm hole.



pOWER sUPPLY


30V DC (KNX Bus)



CONNECTOR

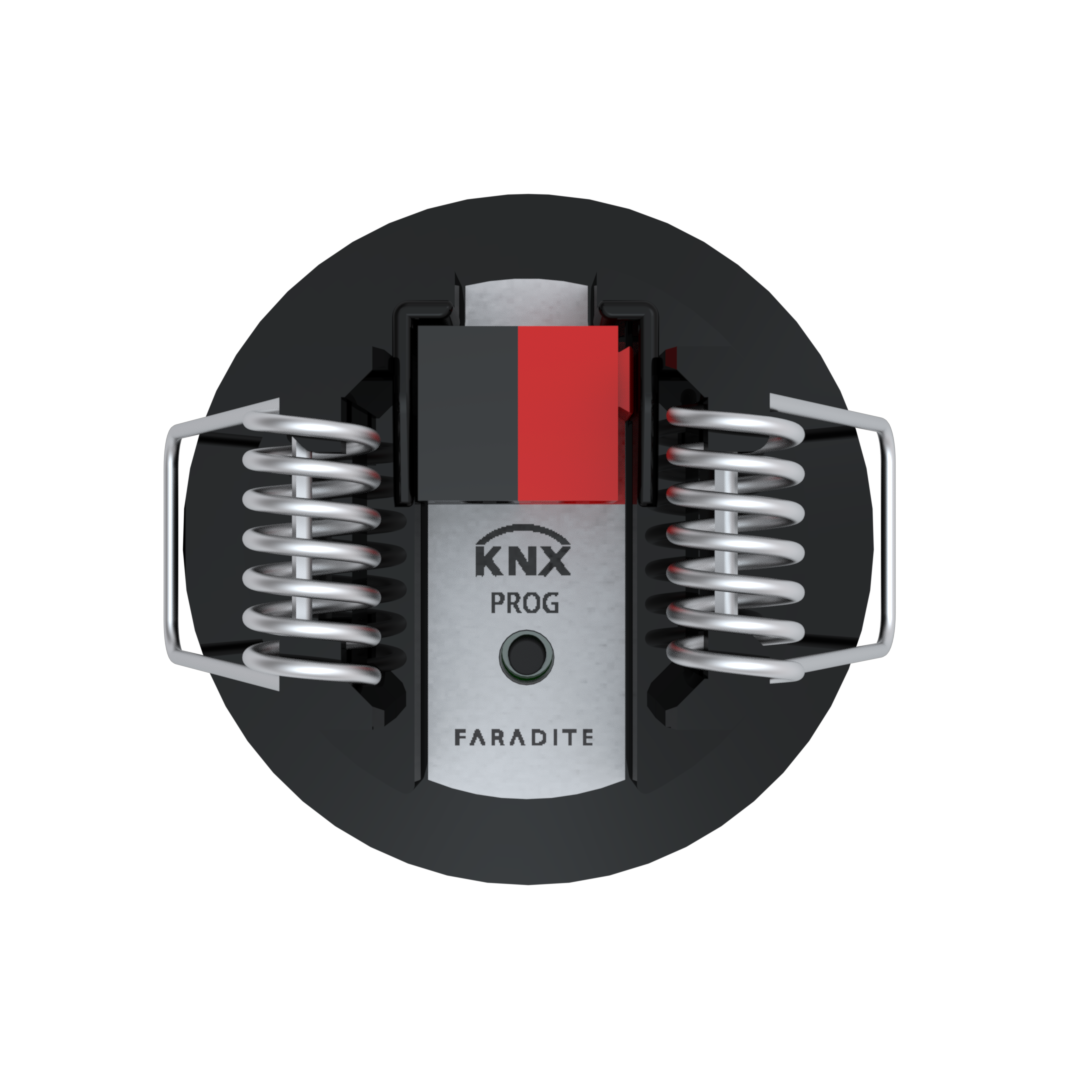

The KNX bus is connected using the supplied Wago connectors.



RANGE / DETECTION AREA


Specified Range 5M / When mounted at a height of 3M, the sensor covers an ~8M diameter floor area. When mounted at 2.5M, it covers a floor area of 5.6M by 6.6M. When Installed vertically a max range of 5M should be observed. The sensor may be triggered by movement up to 9M away in certain circumstances.
