Custom TAP-5 Brushed Copper

£ 82.75

Notify me when back in stock

Lead time 6 weeks

Subject to a one off £250.00 artwork charge per engraved order. Charged separately after ordering. Only charged once per order regardless of number of designs or number of keypads in the order . Use the tool above to generate your ideal keypad, proceed to the cart where you can check your artwork by clicking on the artwork link, add other designs by navigating back to this page. You can add an unlimited amount of designs to the cart.

It's more than just a light switch. The TAP range is a collection of contemporary modern switch plates for use with 24V home automation systems.

Each switch plate uses touch sensors with vibration feedback to control your home and temperature sensors are built in as standard. We believe that knowing the temperature of each room is the key to an energy efficient smart home.

Effortless control. The TAP-5 with its 5 buttons can be configured to control your lights, blinds, music and heating all from one switch plate.

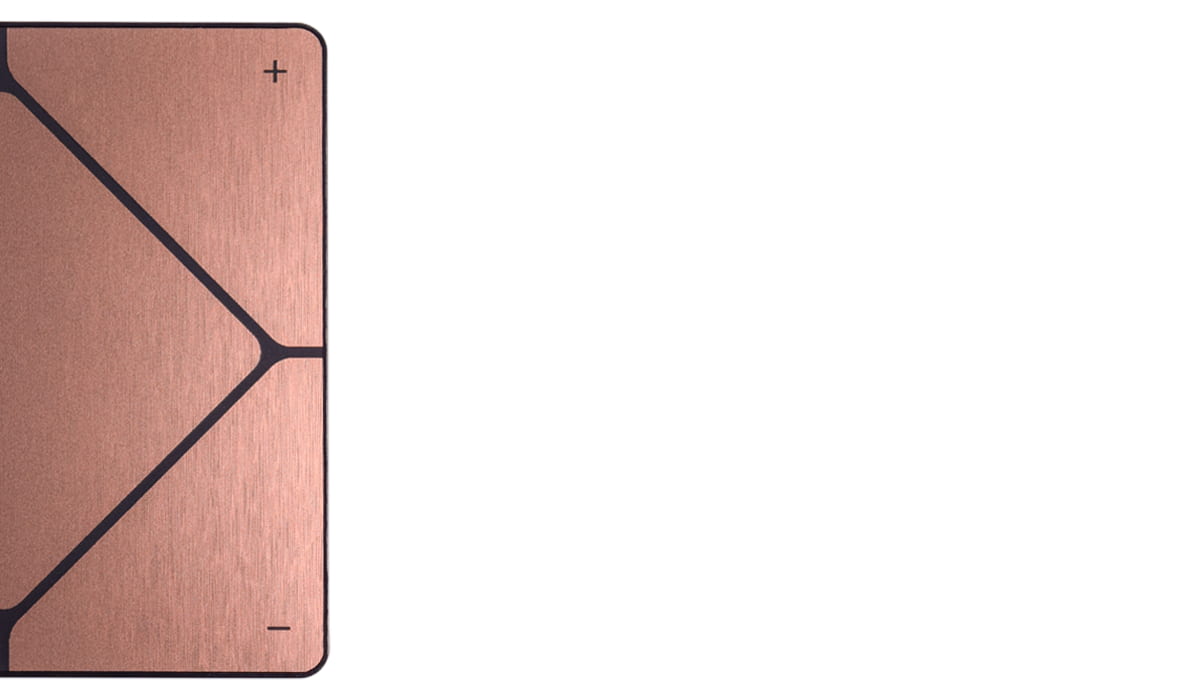

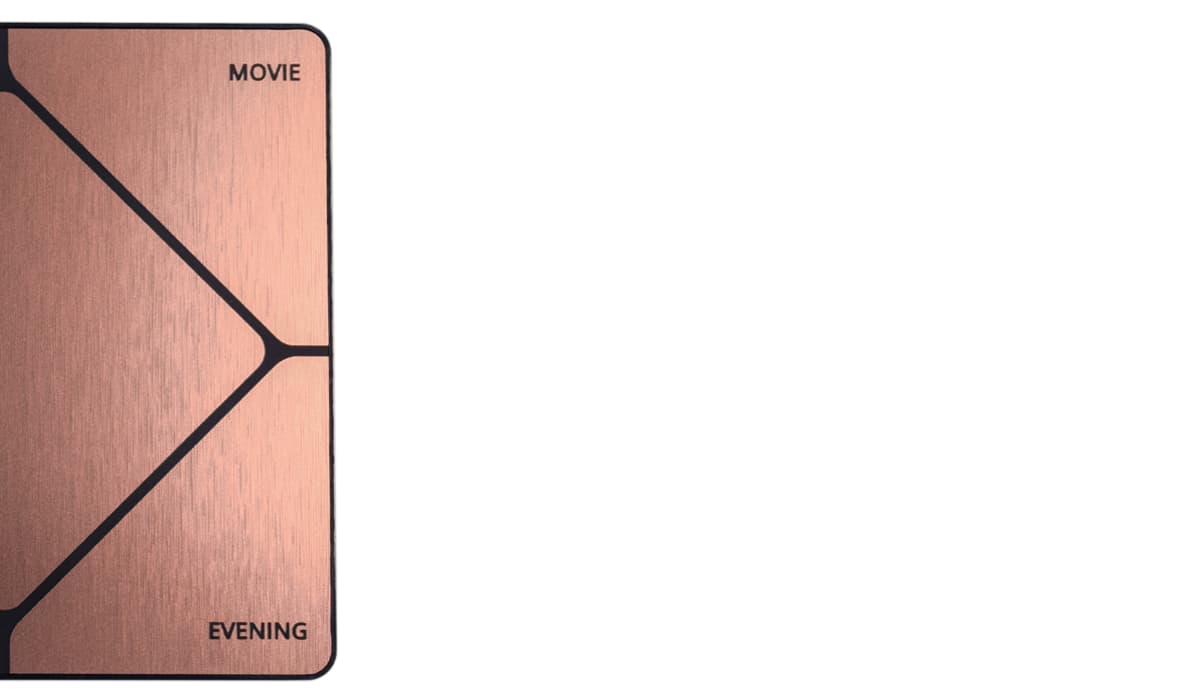

We are very proud of our finishes, which are engineered to precision with a finger proof coating, and the ability to be engraved to further customise the switch (engraving metallic only).


Modern and minimalist capacitive touch switching

Faradite TAP-5 smart home light switch on decorative wall
Complete range of Faradite TAP home automation switches laying flat on a white surface
Faradite Brushed Copper TAP-5 on Loxone system
Faradite matt white TAP-1 mounted on a kitchen wall used with Loxone

Simply Connects to Multiple Systems

Loxone logo for Faradite technical information

The TAP-5 can be connected to a Loxone smart home via Loxone Tree Technology or directly to a Loxone Miniserver.

connect via loxone tree

The TAP-5 connects directly to the Tree bus using a Nano DI Tree

Connect to Loxone Miniserver

The TAP-5 connects directly to the Miniserver using digital inputs


Temperature Sensor

All our switches come with a temperature sensor. Knowing the temperature of each room is the key to an energy efficient smart home

Touch Vibration

Our favourite feature - the TAP Range gives tactile vibration feedback at each touch, and works with double/triple click functions

24V DC

Compatible with Loxone and other 24V home automation systems

Digital outputs

Connects to the digital inputs of smart home automation systems, allowing your switch plate to control multiple devices

Available for UK and EU back boxes


Faradite TAP switch for smart homes dimensions diagram
technical specification


Measures temperatures from -55°C to +125°C (-67°F to +257°F) ±0.5°C accuracy from -10°C to +85°C Each device has a unique 64-Bit serial code stored in an on-board ROM

Wire Gauge

Conductor cross section min AWG 24 - max 20 AWG


60mm centre for UK & EU back boxes (please ensure that you select the correct variant for your country)

Easy access test points

The TAP-5 comes with easy-to-access test points which have been built in alongside the push-fit connectors allowing you to probe the digital outputs when installed
